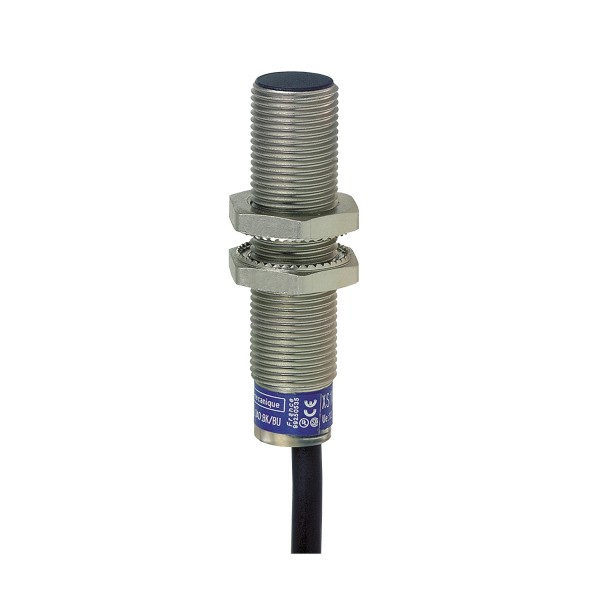

inductive sensor XS1 M12 - L55mm - brass - Sn2mm - 24..240VAC/DC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
wiring configuration	2-wire
output circuit type	AC/DC
protection type	Short-circuit protection multi voltage
device application	2-wire DC short-circuit protection
sensor name	XS1
sensor design	Cylindrical M12
size	55 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	2 mm
discrete output function	1 NC
electrical connection	Cable
cable length	10 m
[Us] rated supply voltage	24...210 V DC 24...240 V AC 50/60 Hz
switching capacity in mA	5...200 mA AC/DC with overload and short-circuit protection
IP degree of protection	IP68 double insulation conforming to IEC 60529

Environment
product certifications	CSA CCC UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-7

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
