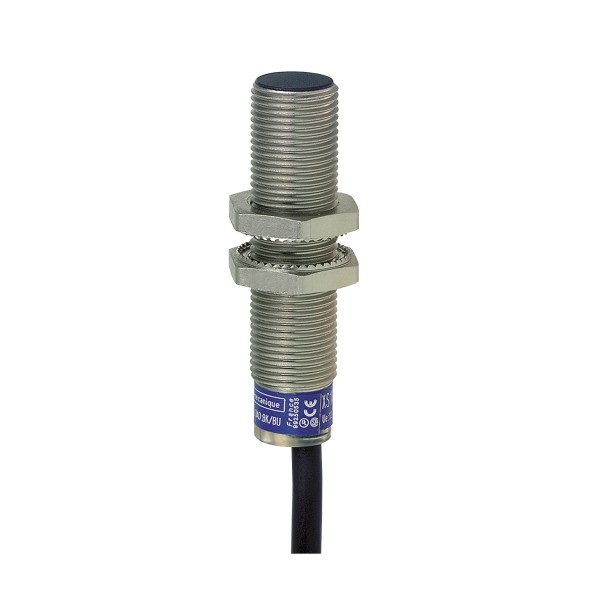

inductive sensor XS1 M12 - L55mm - brass - Sn2mm

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
wiring configuration	2-wire
output circuit type	AC/DC
protection type	Short-circuit protection
device application	2-wire DC short-circuit protection
sensor name	XS1
sensor design	Cylindrical M12
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	2 mm
discrete output function	1 NC
electrical connection	Cable
[Us] rated supply voltage	24...210 V DC 24...240 V AC 50/60 Hz
switching capacity in mA	5...200 mA AC/DC overload and short-circuit protection
IP degree of protection	IP68 double insulation IEC 60529

Environment
product certifications	CSA UL CCC
ambient air temperature for operation	-40…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-7

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
