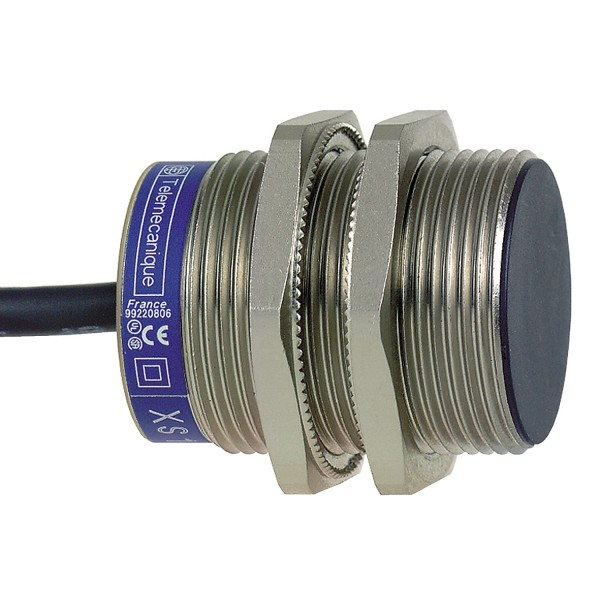

inductive sensor XS1 M30 - L41mm - brass - Sn10mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	Mobile equipment
sensor name	XS1
sensor design	Cylindrical M30
size	44 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
type of output signal	Discrete
wiring technique	4-wire
[Sn] nominal sensing distance	10 mm
discrete output function	1 NO + 1 NC
output circuit type	DC
discrete output type	PNP
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC reverse polarity protection
switching capacity in mA	<= 200 mA overload and short-circuit protection
IP degree of protection	IP68 IEC 60529 IP65

Complementary
safety level	SIL 2 EN/IEC 61508 PL = d EN/ISO 13849-1 SILCL 2 IEC 62061
safety reliability data	MTTFd = 1810 years PFHd = 62.9E-9 1/h SFF = 92 % DC = 74 % with appropriate safety controller
service life	20 year(s)
thread type	M30 x 1.5
detection face	Frontal
front material	PPS
enclosure material	Nickel plated brass
operating zone	0…8 mm
differential travel	1...15% of Sr
cable composition	4 x 0.22 mm²
wire insulation material	PvR
status LED	Output state 1 LED yellow)
supply voltage limits	9…36 V DC
switching frequency	<= 1000 Hz
maximum voltage drop	<2 V closed)
current consumption	0...10 mA no-load
maximum delay first up	5 ms
maximum delay response	0,3 ms
maximum delay recovery	0,7 ms
marking	CE
threaded length	33 mm
height	30 mm
length	45 mm
net weight	0,16 kg

Environment
standards	EN/ISO 13849-1 IEC 62061
product certifications	UL TÜV E2 CSA
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
