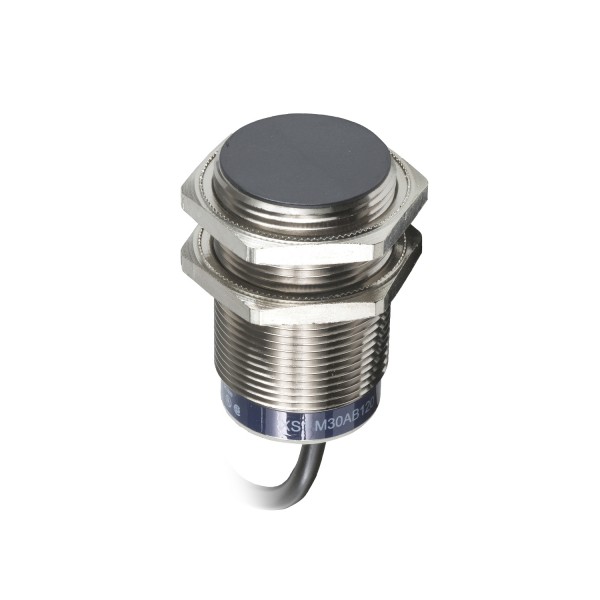

inductive sensor XS1 M30 - L50mm - brass - Sn10mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	Application
sensor type	Inductive proximity sensor
electrical circuit type	Analog output
sensor name	XS1
sensor design	Cylindrical M30
size	54 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
type of output signal	Analogue
wiring technique	2-wire
[Sn] nominal sensing distance	10 mm
discrete output function	1 NC
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC
IP degree of protection	IP67 IEC 60529

Complementary
thread type	M30 x 1.5
detection face	Frontal
front material	PPS
enclosure material	Nickel plated brass
operating zone	1…10 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
supply voltage limits	10…36 V DC
switching frequency	<= 300 Hz
current consumption	4 mA no-load
maximum output current drift	10 %
marking	CE
threaded length	42 mm
height	30 mm
length	50 mm
net weight	0,2 kg

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
