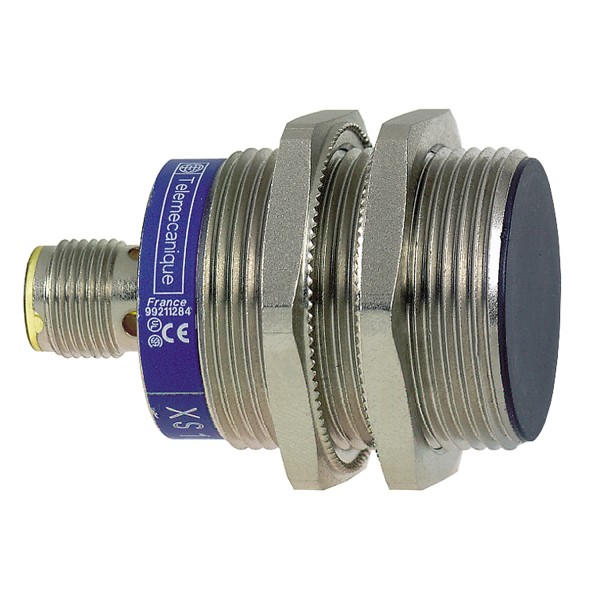

inductive sensor XS1 M30 - L55mm - brass - Sn20mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	-
sensor name	XS1
sensor design	Cylindrical M30
size	55 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
enclosure material	Nickel plated brass
type of output signal	Discrete
wiring technique	3-wire
[Sn] nominal sensing distance	20 mm
discrete output function	1 NO
output circuit type	DC
discrete output type	NPN
electrical connection	Male connector M12, 4 pins
[Us] rated supply voltage	12...24 V DC reverse polarity protection
switching capacity in mA	<= 200 mA DC overload and short-circuit protection
IP degree of protection	IP67 IEC 60529 IP69K DIN 40050

Environment
product certifications	UL CSA
ambient air temperature for operation	-25…50 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
