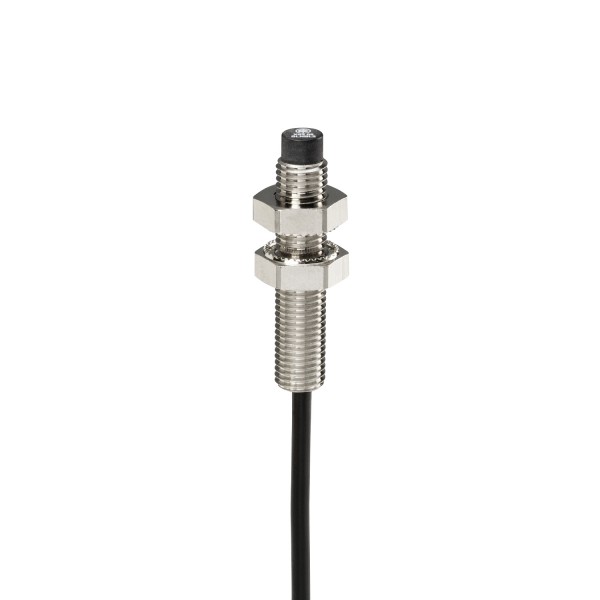

inductive sensor XS1 M8 - L42mm - brass - Sn1.5mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
sensor name	XS1
sensor design	Cylindrical M8
size	42 mm
body type	Fixed
enclosure material	Nickel plated brass
type of output signal	Discrete
wiring technique	3-wire
[Sn] nominal sensing distance	1,5 mm
discrete output function	1 NO
discrete output type	NPN
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC reverse polarity protection
switching capacity in mA	<= 200 mA overload and short-circuit protection
IP degree of protection	IP67 IEC 60529

Complementary
ISO thread	M8 x 1
detection face	Frontal
detector flush mounting acceptance	Flush mountable
material	Metal
front material	PPS
operating zone	0…1,2 mm
differential travel	1...15% of Sr
output circuit type	DC
cable composition	3 x 0.11 mm²
wire insulation material	PVC
status LED	Output state 1 LED yellow)
supply voltage limits	10…36 V DC
maximum voltage drop	<2 V closed)
current consumption	<= 10 mA no-load
maximum delay first up	5 ms
maximum delay response	0,5 ms
maximum delay recovery	1 ms
marking	CE
threaded length	33 mm
height	8 mm
length	42 mm
net weight	0,035 kg

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
