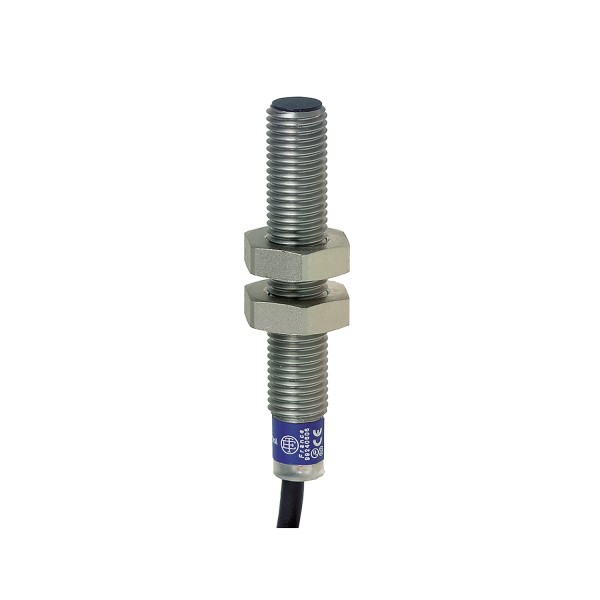

inductive sensor XS1 M8 - L50mm - stainless - Sn1mm - 24..240VAC/DC - cable 10m

Ülevaaded: 0

Tootekood: XS1M08MA230L2

Quick Overview

Saadavus: Tellimisel

136,91 € (ilma KM-ta)

Details

Main
range of product
OsiSense XS
series name
General purpose
sensor type
Inductive proximity sensor
product specific application
-
sensor name
XS1
sensor design
Cylindrical M8
size
50 mm
body type
Fixed
enclosure material
Stainless steel
type of output signal
Discrete
wiring technique
2-wire
[Sn] nominal sensing distance
1 mm
discrete output function
1 NO
electrical connection
Cable
cable length
10 m
[Us] rated supply voltage
24...210 V DC
24...240 V AC
switching capacity in mA
5...100 mA
IP degree of protection
IP67
Complementary
ISO thread
M8 x 1
detection face
Frontal
detector flush mounting acceptance
Flush mountable
material
Stainless steel
front material
PPS
output circuit type
AC/DC
cable composition
2 x 0.11 mm²
wire insulation material
PvR
switching frequency
<= 25 Hz AC
<= 3000 Hz DC
marking
CE
height
8 mm
length
50 mm
net weight
0.115 kg
Environment
product certifications
CCC
CSA
UL
ambient air temperature for operation
-25…80 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
