Details
Characteristics
| range of product | OsiSense XS | |
|---|---|---|
| series name | Application | |

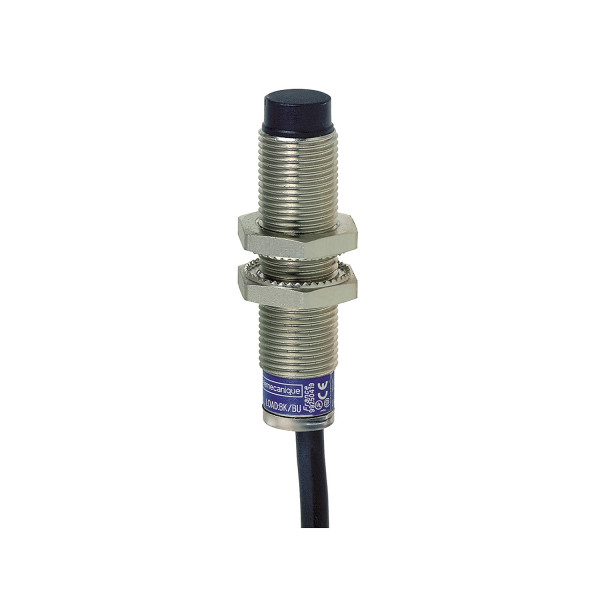

| sensor type | Inductive proximity sensor | |
| electrical circuit type | Analog output | |
| sensor name | XS2 | |
| sensor design | Cylindrical M12 | |
| size | 54 mm | |
| body type | Fixed | |
| detector flush mounting acceptance | Non flush mountable | |
| material | Metal | |
| type of output signal | Analogue | |
| wiring technique | 2-wire | |
| [Sn] nominal sensing distance | 4 mm | |
| output circuit type | DC | |
| analogue output range | 4...20 mA | |
| electrical connection | Cable | |
| cable length | 2 m | |
| [Us] rated supply voltage | 12...24 V DC | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M12 x 1 | |
|---|---|---|
| detection face | Frontal | |
| front material | PPS | |
| enclosure material | Nickel plated brass | |
| supply voltage limits | 10…36 V DC | |
| switching frequency | <= 1500 Hz | |
| current consumption | 4 mA no-load | |
| maximum output current drift | 10 % | |
| marking | CE | |
| threaded length | 36 mm | |
| height | 12 mm | |
| length | 50 mm | |
| net weight | 0.11 kg |
| product certifications | CCCCSAUL | |
|---|---|---|
| ambient air temperature for operation | -25…70 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
