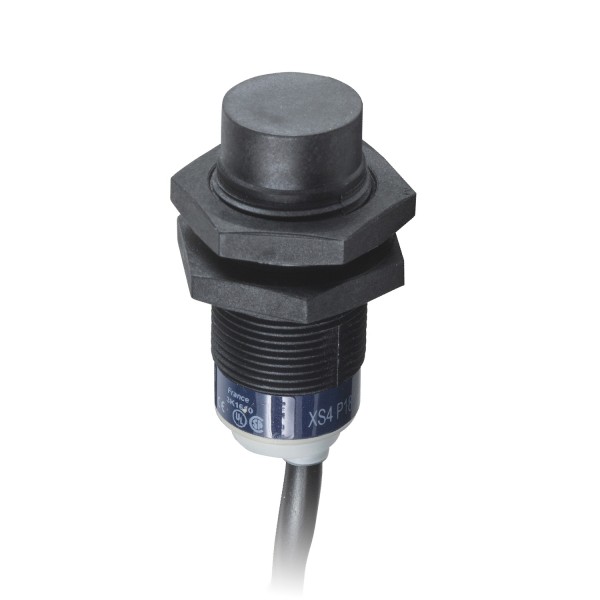

inductive sensor XS4 M18 - L41mm - PBT - Sn8mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	Application
sensor type	Inductive proximity sensor
electrical circuit type	Analog output
sensor name	XS4
sensor design	Cylindrical M18
size	41 mm
body type	Fixed
detector flush mounting acceptance	Non flush mountable
material	Plastic
type of output signal	Analogue
wiring technique	2-wire
[Sn] nominal sensing distance	8 mm
discrete output function	1 NC
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC
IP degree of protection	IP67 IEC 60529

Complementary
thread type	M18 x 1
detection face	Frontal
front material	PPS
enclosure material	PBT
operating zone	0,8…8 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
supply voltage limits	10…38 V DC
switching frequency	<= 500 Hz
current consumption	4 mA no-load
maximum output current drift	10 %
marking	CE
threaded length	26 mm
height	18 mm
length	41 mm
net weight	0,08 kg

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
