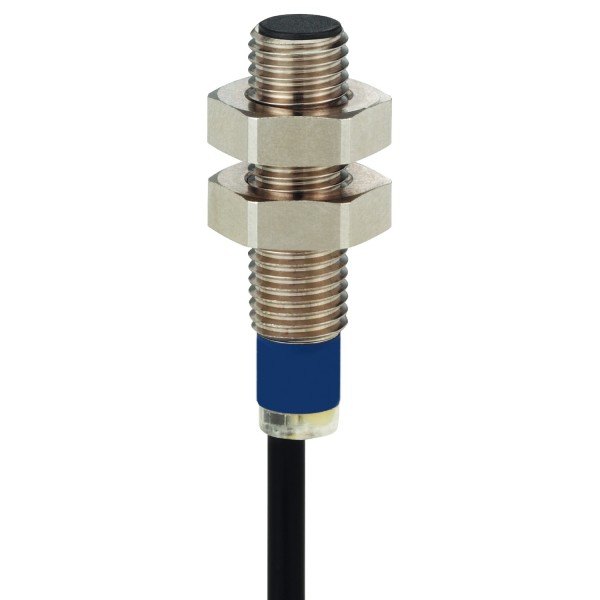

inductive sensor XS5 M8 - L51mm - stainless - Sn1.5mm - 12..48VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	-
sensor name	XS5
sensor design	Cylindrical M8
size	51 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Stainless steel
type of output signal	Discrete
wiring technique	3-wire
[Sn] nominal sensing distance	1.5 mm
discrete output function	1 NC
output circuit type	DC
discrete output type	NPN
electrical connection	cable
cable length	2 m
[Us] rated supply voltage	12...48 V DC with reverse polarity protection
switching capacity in mA	<= 200 mA DC with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
