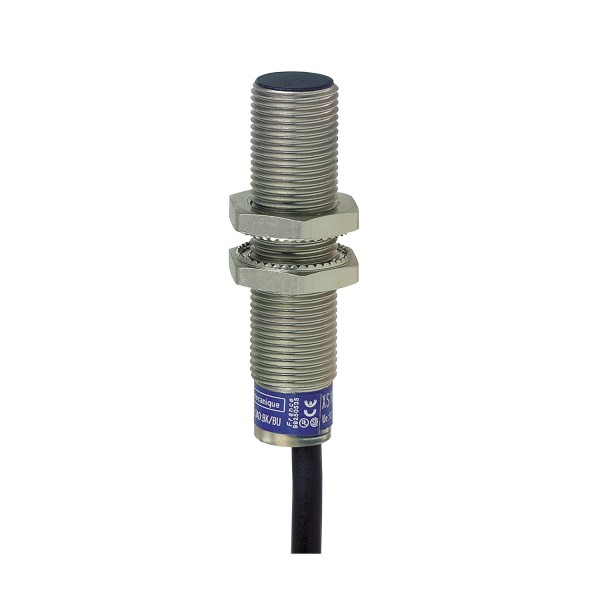

inductive sensor XS6 M12 - L53mm - brass - Sn4mm - 24..240VAC/DC - cable 10m

Ülevaaded: 0

Tootekood: XS612B1MAL10

Quick Overview

Saadavus: Tellimisel

76,43 € (ilma KM-ta)

Details

Main
range of product
OsiSense XS
series name
General purpose
sensor type
Inductive proximity sensor
sensor name
XS6
sensor design
Cylindrical M12
size
54 mm
body type
Fixed
detector flush mounting acceptance
Flush mountable
material
Metal
type of output signal
Discrete
wiring technique
2-wire
[Sn] nominal sensing distance
4 mm
discrete output function
1 NO
output circuit type
AC/DC
electrical connection
Cable
cable length
10 m
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
switching capacity in mA
5...200 mA AC/DC
IP degree of protection
IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050
Complementary
thread type
M12 x 1
detection face
Frontal
front material
PPS
enclosure material
Nickel plated brass
sensing range
> 2.5...4 mm
operating zone
0…3.2 mm
differential travel
1...15% of Sr
cable composition
2 x 0.34 mm²
wire insulation material
PvR
status LED
Output state: 1 LED (yellow)
supply voltage limits
20…264 V AC/DC
maximum residual current
0.8 mA open state
switching frequency
<= 1000 Hz DC
<= 25 Hz AC
maximum voltage drop
<5.5 V (closed)
maximum delay first up
20 ms
maximum delay response
0.5 ms
maximum delay recovery
0.2 ms
marking
CE
threaded length
42 mm
length
53 mm
net weight
0.395 kg
Environment
product certifications
UL
CSA
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
