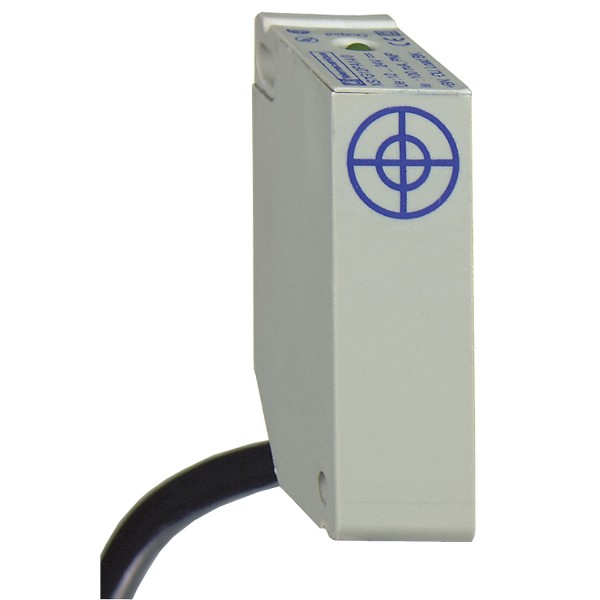

inductive sensor XS7 12x40x26 - plastic - Sn2mm - 12..48VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
product specific application	-
sensor name	XS7
sensor design	Form 12 x 40 x 26
size	26 mm
body type	Fixed
enclosure material	Plastic
type of output signal	Discrete
wiring technique	4-wire
[Sn] nominal sensing distance	2 mm
discrete output function	1 NO or 1 NC programmable
discrete output type	PNP
electrical connection	Cable
cable length	5 m
wire insulation material	PVC
[Us] rated supply voltage	12...48 V DC
switching capacity in mA	<= 200 mA with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529

Complementary
detection face	Lateral
detector flush mounting acceptance	Flush mountable
material	Plastic
front material	Plastic
operating zone	0…1.6 mm
differential travel	3...20% of Sr
repeat accuracy	<= 10% of Sr
output circuit type	DC
cable composition	4 x 0.34 mm²
status LED	Output state: 1 LED (yellow)
supply voltage limits	10…58 V DC
switching frequency	<= 2000 Hz
maximum voltage drop	<2.6 V (closed)
current consumption	0...10 mA no-load
maximum delay first up	4 ms
maximum delay response	0.5 ms
maximum delay recovery	1 ms
marking	CE
depth	26 mm
height	40 mm
width	12 mm

Environment
product certifications	CSA UL CCC
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
