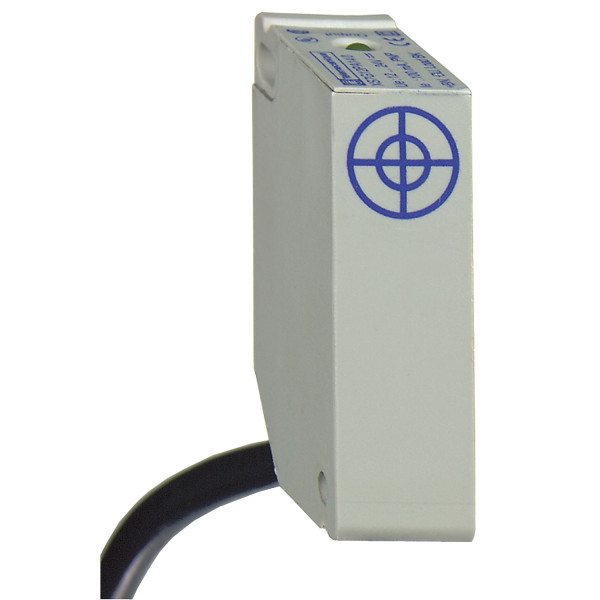

inductive sensor XS7 12x40x26 - plastic - Sn2mm - 24..240VAC/DC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
product specific application	-
sensor name	XS7
sensor design	Form 12 x 40 x 26
size	26 mm
body type	Fixed
enclosure material	Plastic
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	2 mm
discrete output function	1 NC
electrical connection	Cable
cable length	2 m
wire insulation material	PVC
[Us] rated supply voltage	24...210 V DC 24...240 V AC 50/60 Hz
switching capacity in mA	5...200 mA
IP degree of protection	IP67 IEC 60529

Complementary
detection face	Lateral
detector flush mounting acceptance	Flush mountable
material	Plastic
front material	Plastic
operating zone	0…1,6 mm
differential travel	3...20% of Sr
repeat accuracy	<= 10% of Sr
output circuit type	AC/DC
cable composition	2 x 0.34 mm²
status LED	Output state 1 LED yellow)
supply voltage limits	20…264 V AC/DC
maximum residual current	0,8 mA open state 24 V 1,5 mA open state 120 V
switching frequency	<= 25 Hz AC <= 250 Hz DC
maximum voltage drop	<5,5 V closed)
maximum delay first up	40 ms
maximum delay response	1 ms
maximum delay recovery	2 ms
marking	CE
depth	26 mm
height	40 mm
width	12 mm
net weight	0,1 kg

Environment
product certifications	CCC UL CSA
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
