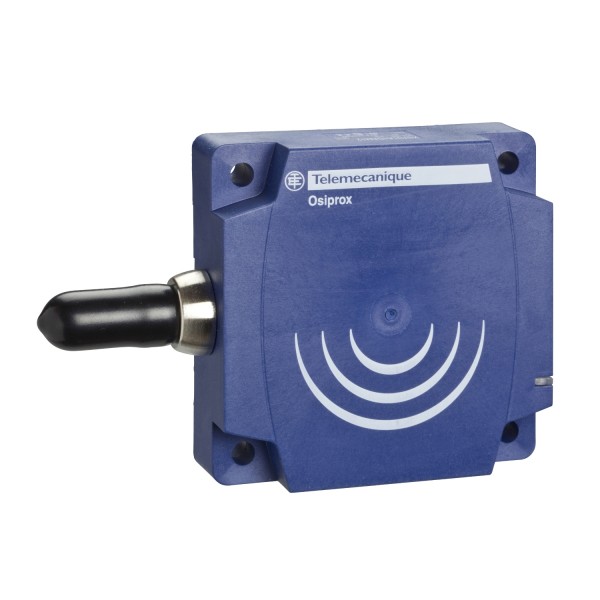

inductive sensor XS7 80x80x26 - PBT - Sn40mm - 12..24VDC - M12

Ülevaaded: 0

Tootekood: XS7D1A1CAM12DIN

Quick Overview

Saadavus: Tellimisel

56,71 € (ilma KM-ta)

Details

Main
range of product
OsiSense XS
series name
General purpose
sensor type
Inductive proximity sensor
device application
-
sensor name
XS7
sensor design
Flat form 80 x 80 x 26
size
40 mm
body type
Fixed clippable onto DIN rail
detector flush mounting acceptance
Flush mountable
material
Plastic
enclosure material
PBT
type of output signal
Discrete
wiring technique
2-wire
discrete output function
1 NO
output circuit type
DC
electrical connection
4 pins M12 male connector, pin assignment : 1-4
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
switching capacity in mA
1.5...100 mA DC with overload and short-circuit protection
IP degree of protection
IP67 double insulation conforming to IEC 60529
Complementary
detection face
Frontal
front material
PBT
operating zone
0…32 mm
differential travel
1...15% of Sr
status LED
Output state: 1 LED (yellow)
supply voltage limits
10…36 V DC
maximum residual current
0.5 mA open state
switching frequency
<= 100 Hz
maximum voltage drop
<4 V (closed)
maximum delay first up
10 ms
maximum delay response
10 ms
maximum delay recovery
10 ms
marking
CE
depth
40 mm
height
80 mm
width
80 mm
Environment
product certifications
UL
CSA
C-Tick
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
