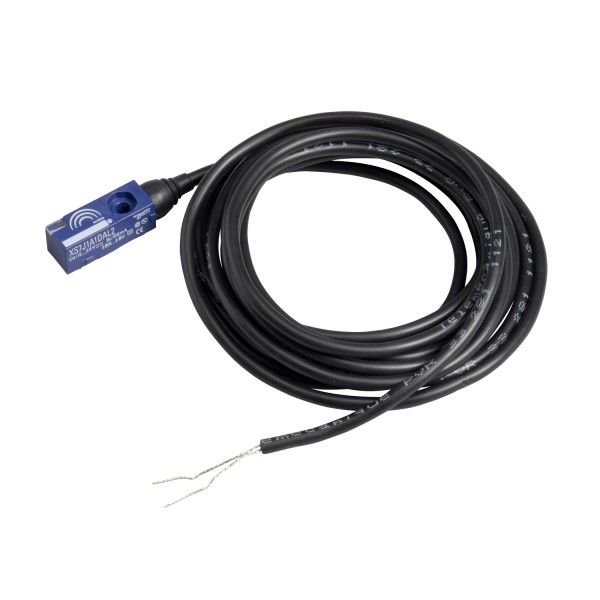

inductive sensor XS7 8x22x8 - PBT - Sn2.5mm - 12..24VDC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	-
sensor name	XS7
sensor design	Flat form 8 x 22 x 8
size	8 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Plastic
enclosure material	PBT
type of output signal	Discrete
wiring technique	2-wire
discrete output function	1 NC
output circuit type	DC
electrical connection	cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
switching capacity in mA	1.5...100 mA DC with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529

Environment
product certifications	CSA UL C-Tick
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
