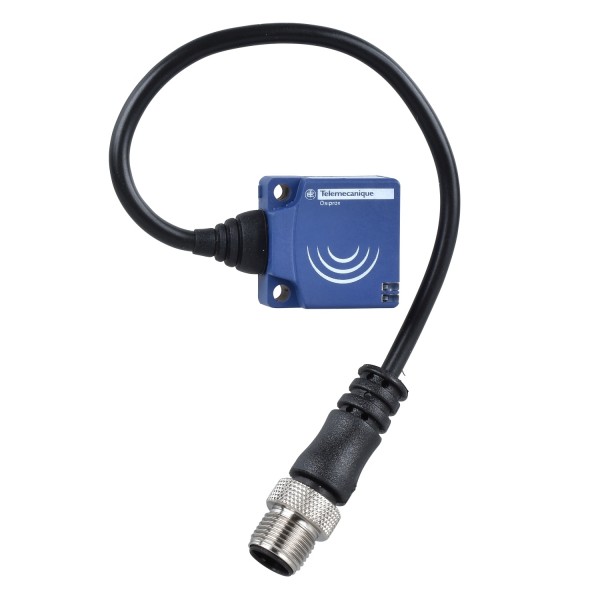

inductive sensor XS8 26x26x13 - PBT - Sn15mm - 24..240VAC/DC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	-
sensor name	XS8
sensor design	Flat form 26 x 26 x 13
size	13 mm
body type	Fixed
detector flush mounting acceptance	Non flush mountable
material	Plastic
enclosure material	PBT
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	10 mm flush mountable 15 mm non flush mountable
discrete output function	1 NC
output circuit type	AC/DC
electrical connection	Remote male connector 1/2"20 UNF, 3 pins
cable length	0,15 m
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz
switching capacity in mA	5...200 mA AC/DC
IP degree of protection	IP67 double insulation IEC 60529

Complementary
detection face	Frontal
front material	PBT
fine adjustment zone	5…10 mm flush mountable 5…15 mm non flush mountable
differential travel	1...15% of Sr
wire insulation material	PvR
supply voltage limits	20…264 V AC/DC
maximum residual current	1,5 mA open state
switching frequency	<= 2000 Hz
maximum voltage drop	<5,5 V closed)
current consumption	<= 10 mA no-load
maximum delay first up	10 ms
maximum delay response	0,3 ms
maximum delay recovery	0,8 ms
marking	CE
depth	13 mm
height	26 mm
width	26 mm
net weight	0,04 kg

Environment
product certifications	CSA UL CCC Ecolab
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
