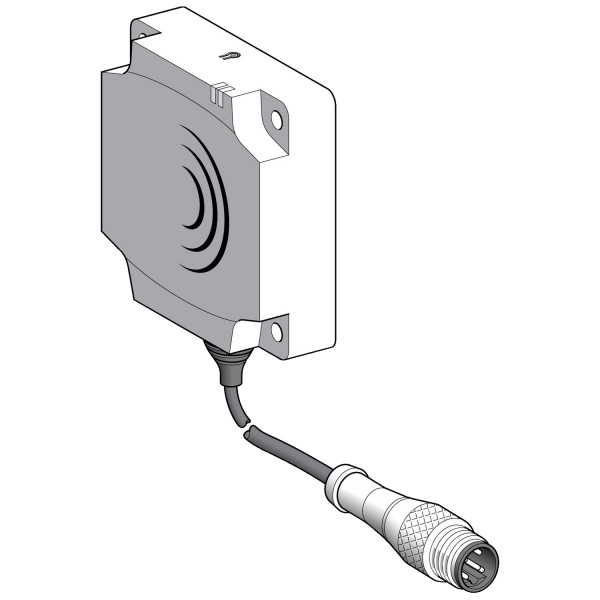

inductive sensor XS8 80x80x26 - PBT - Sn60mm - 24..240VAC/DC

Details

Main
range of product	OsiSense XS
series name	General purpose
sensor type	Inductive proximity sensor
device application	-
sensor name	XS8
sensor design	Flat form 80 x 80 x 26
size	40 mm
body type	Fixed clippable onto DIN rail
detector flush mounting acceptance	Non flush mountable
material	Plastic
enclosure material	PBT
type of output signal	Discrete
wiring technique	2-wire
[Sn] nominal sensing distance	40 mm flush mountable 60 mm non flush mountable
discrete output function	1 NO
output circuit type	AC/DC
electrical connection	Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz
switching capacity in mA	5...200 mA DC 5...300 mA AC
IP degree of protection	IP67 double insulation conforming to IEC 60529

Complementary
detection face	Frontal
front material	PBT
fine adjustment zone	20…40 mm flush mountable 20…60 mm non flush mountable
differential travel	1...15% of Sr
supply voltage limits	20…264 V AC/DC
maximum residual current	1.5 mA open state
switching frequency	<= 150 Hz
maximum voltage drop	<5.5 V (closed)
current consumption	<= 10 mA no-load
maximum delay first up	15 ms
maximum delay response	0.3 ms
maximum delay recovery	6 ms
marking	CE
depth	40 mm
height	80 mm
width	80 mm

Environment
product certifications	CCC CSA UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
