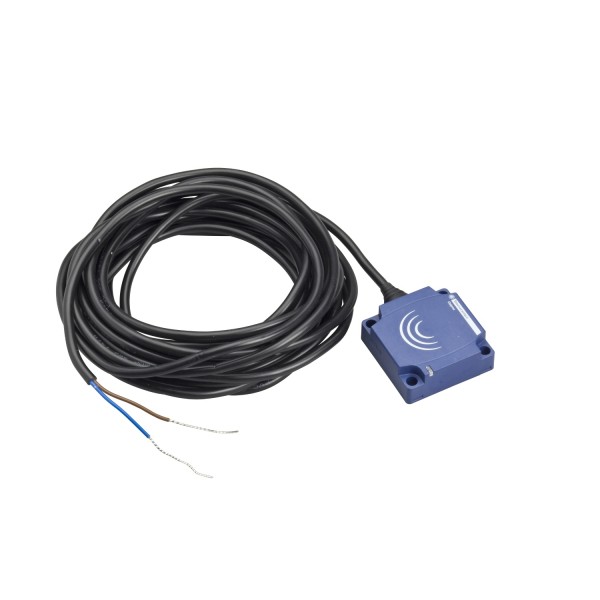

inductive sensor XS9 40x40x15 - PBT - Sn15mm - 24VDC

Details

Main
range of product	OsiSense XS
series name	Application
sensor type	Inductive proximity sensor
device application	-
sensor name	XS9
sensor design	Flat form 40 x 40 x 15
size	15 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Plastic
enclosure material	PBT
type of output signal	Analogue
wiring technique	2-wire
[Sn] nominal sensing distance	15 mm
discrete output function	1 NO
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	5 m
[Us] rated supply voltage	24 V DC
IP degree of protection	IP68 double insulation conforming to IEC 60529

Complementary
detection face	Frontal
front material	PBT
operating zone	2…15 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
status LED	Without
supply voltage limits	15…36 V DC
switching frequency	<= 1000 Hz
current consumption	0...4 mA no-load
maximum output current drift	10 %
marking	CE
depth	15 mm
height	40 mm
width	40 mm

Environment
product certifications	CSA UL
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
