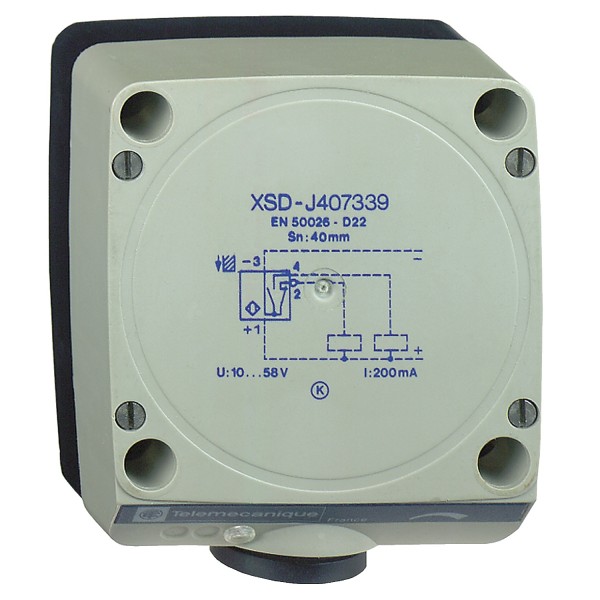

inductive sensor XSD 80x80x40 - plastic - Sn40mm - 12..48VDC - terminals

Ülevaaded: 0

Tootekood: XSDH407339H7

Quick Overview

Saadavus: Tellimisel

206,23 € (ilma KM-ta)

Details

Main
range of product
OsiSense XS
series name
General purpose
sensor type
Inductive proximity sensor
product specific application
-
sensor name
XSD
sensor design
Form 80 x 80 x 40
size
40 mm
body type
Fixed
enclosure material
Plastic
type of output signal
Discrete
wiring technique
4-wire
[Sn] nominal sensing distance
40 mm
discrete output function
1 NO + 1 NC
discrete output type
PNP
electrical connection
Screw-clamp terminals
[Us] rated supply voltage
12...48 V DC
IP degree of protection
IP67
Complementary
detection face
Frontal
detector flush mounting acceptance
Non flush mountable
material
Plastic
front material
Plastic
output circuit type
DC
cable entry
1 entry tapped for 1/2" NPT cable gland
switching capacity in mA
<= 200 mA
switching frequency
<= 50 Hz
marking
CE
depth
40 mm
height
100 mm
width
80 mm
Environment
product certifications
CSA
UL
CCC
ambient air temperature for operation
-25…70 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
