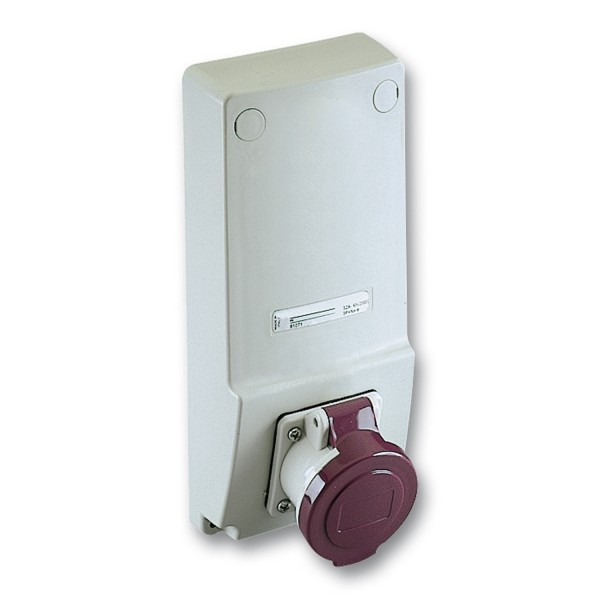

industrial socket - 16 A - 2P - 400 V AC - IP 44

Details

Complementary
[In] rated current	16 A
[Ue] rated operational voltage	400 V
output voltage	24 V
network frequency	50/60 Hz
ground lug clockwise position	Without
secondary keyway clockwise position	Without
transformer rated power in VA	160 VA
fuse type	Cylindrical
fuse size	Without
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Sleeves: nickel plated brass
connections - terminals	Captive screws
maximum cable cross section	6 mm²
maximum cable outer diameter	25 mm
cable entry	Cable gland
thread type	Pg 21
base dimension	103 x 225 mm
height	225 mm
width	103 mm
depth	126 mm
colour	Violet (RAL 7035)
voltage colour	Violet

Environment
standards	EN 50102 IEC 529 IEC 309-1 IEC 695-2-1 IEC 742 IEC 309-2
IP degree of protection	IP44 conforming to IEC 529
IK degree of protection	IK09 conforming to EN 50102
fire resistance	750 °C conforming to IEC 60695-2-1
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s )
