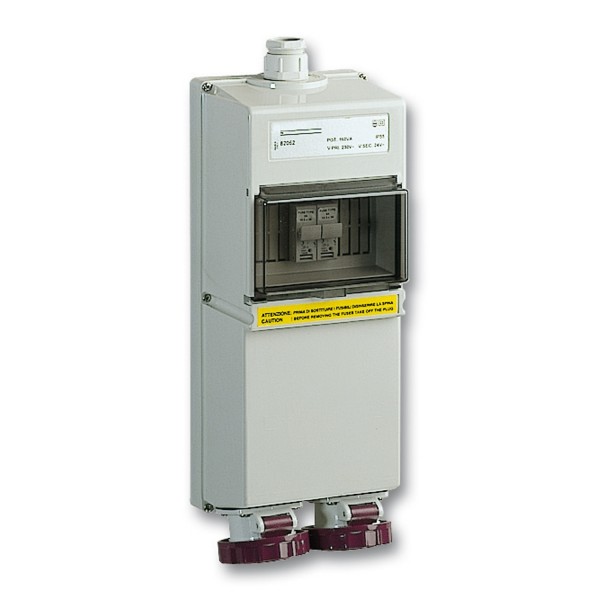

industrial socket - 2x16 A - 2P - 230 V AC - IP 65

Details

Complementary
[In] rated current	16 A
[Ue] rated operational voltage	230 V
output voltage	24 V
network frequency	50/60 Hz
ground lug clockwise position	Without
secondary keyway clockwise position	Without
transformer rated power in VA	160 VA
fuse type	Cylindrical
fuse size	10.3 x 38 mm
socket number	2
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Sleeves: nickel plated brass
connections - terminals	Captive screws
maximum cable cross section	6 mm²
maximum cable outer diameter	25 mm
cable entry	Cable gland
thread type	Pg 21
base dimension	144 x 345 mm
height	345 mm
width	144 mm
depth	126 mm
colour	Grey (RAL 7035)
voltage colour	Violet

Environment
standards	IEC 309-2 IEC 309-1
IP degree of protection	IP65 conforming to IEC 529
IK degree of protection	IK10 conforming to EN 50102
fire resistance	850 °C conforming to IEC 60695-2-1
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s )

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
