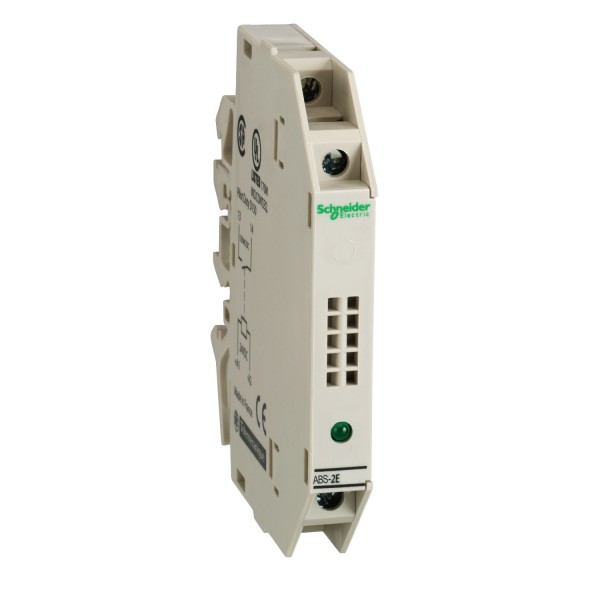

input interface module - 9.5 mm - solid state

Details

Main
range of product	Interface for discrete signals
product or component type	Slim solid state input interface module
contacts type and composition	1 NC
[Uc] control circuit voltage	24 V
control circuit type	DC
maximum [In] rated current	12 mA
reverse polarity protection	Control circuit internal Output circuit internal
short-circuit protection	0,25 A external fuse fast blow Ik <= 100 A DC)
local signalling	Control signal state 1 LED
sale per indivisible quantity	5
width pitch dimension	9,5 mm

Complementary
control circuit voltage limits	28.8 V
voltage state 1 guaranteed	16.9 V
current state 1 guaranteed	7.7 mA
voltage state 0 guaranteed	5.6 V
current state 0 guaranteed	2 mA
[Ue] rated operational voltage	5...48 V
output circuit type	DC
rated operational voltage limits	2...60 V
maximum switching current	50 mA
minimum switching current	1 mA
residual current	0,1 mA at state 0
drop-out voltage	1 V at state 1
response time	<= 0.05 ms from state 0 to state 1 Ue <= 30 V and Ie >= 5 mA <= 0.4 ms from state 1 to state 0 Ue <= 30 V and Ie >= 5 mA
switching frequency	<= 1000 Hz 50 % Ue <= 30 V and Ie >= 5 mA
[Ui] rated insulation voltage	250 V VDE 0110 group C 300 V IEC 60947-1
connections - terminals	Screw clamp terminal
flame retardance	V0 UL 94
cable cross section	0,34…2,5 mm², 1 or 2 wires flexible with cable end 0,6…2,5 mm², 1 or 2 wires flexible without cable end 0,27…4 mm², 1 wire rigid
operating position	Any position
installation category	II IEC 60947-1
mounting support	Symmetrical DIN rail Asymmetrical DIN rail Combination rail
net weight	0,029 kg

Environment
dielectric strength	2500 V between wired interface and earth for 1 minute 4000 V between I/O for 1 minute
standards	IEC 60947-5-1
product certifications	DNV LROS (Lloyds register of shipping) CSA BV UL
IP degree of protection	IP20 IEC 60529
protective treatment	TC
fire resistance	960 °C IEC 60695-2-1
shock resistance	30 gn 11 ms IEC 60068-2-27
vibration resistance	5 gn 10…150 Hz)IEC 68-2-6
electromagnetic compatibility	Electromagnetic field immunity test level 3 10 V/m between 27...1000 MHz IEC 61000-4-3 Electrostatic discharge immunity test level 3 8 kV IEC 61000-4-2 Fast transients immunity test level 3 on input/output 1 kV IEC 61000-4-4 Fast transients immunity test level 3 on power supply 2 kV IEC 61000-4-4 1.2/50 µs shock waves immunity test IEC 60947-1 1.2/50 µs shock waves immunity test IEC 60947-1 1.2/50 µs shock waves immunity test IEC 60947-1
ambient air temperature for operation	-25…70 °C at Us -5…55 °C unrestricted operation
ambient air temperature for storage	-40…80 °C
operating altitude	<= 300 m
pollution degree	2 IEC 60947-1

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
