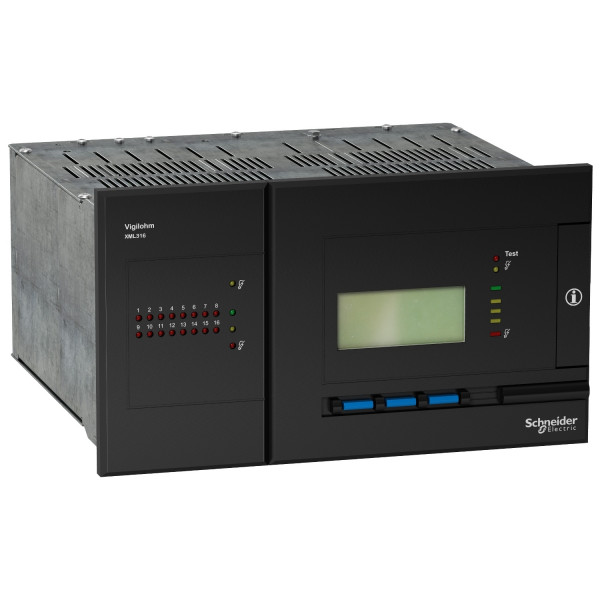

insulation monitoring XML308 Vigilohm - 115..127 V AC 50/60 Hz - failsafe

Ülevaaded: 0

Tootekood: 50490

Quick Overview

Saadavus: Tellimisel

6 101,39 € (ilma KM-ta)

Details

Main
range of product
Vigilohm
device short name
XML308
type of measurement
Network insulation resistance, earth leakage capacitance, local measurement
signal contacts composition
3 C/O
earthing system
IT
display type
LCD
scale
0.1...999 kOhm
number of channels
8
measurement current
0…5 mA
measurement voltage
6 V
fail safe feature
With
[Us] rated supply voltage
115...127 V AC 50/60 Hz - 15...10 %
mounting position
Horizontal
Complementary
[Ue] rated operational voltage
<= 1000 V AC 45...400 Hz device connected to phase with PHT1000 subassembly
<= 1200 V DC device connected with PHT1000
<= 1700 V AC 45...400 Hz device connected to neutral with PHT1000 subassembly
<= 440 V AC 45...400 Hz device connected to phase
<= 500 V DC
<= 760 V AC 45...400 Hz device connected to neutral
signalling function
Alarm
Device fault
Insulation value display
Transient fault
polling time
15 s
test function
Manual, self test
breaking capacity
10 A 24 V DC, L/R = 1 ms
0,45 A 220 V DC, L/R = 1 ms
0,65 A 120 V DC, L/R = 1 ms
2,5 A 48 V DC, L/R = 1 ms
5 A 230 V AC, cos phi = 0,7
3 A 400 V AC, cos phi = 0,7
maximum power consumption in VA
30 VA
mounting mode
Flush-mounted
mounting support
Enclosure
Plate
Cubicle
height
129 mm
width
229 mm
depth
213,5 mm
net weight
4,5 kg
tamperproof of settings
Protected by access code
Protected by sealable cover
auxiliary connection terminal
tunnel type terminals flexible 0,75…1,5 mm²
tunnel type terminals rigid 1…1,5 mm²
Environment
dielectric strength
2500 V
IP degree of protection
IP30
standards
NF C 15-100 §413.4
IEC 364 ch 4 and 5
UTE C 63-080 classes CPI/XA, DLD/M
IEC 61557-8
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-20…70 °C
Contractual warranty
Garantii
18 months
