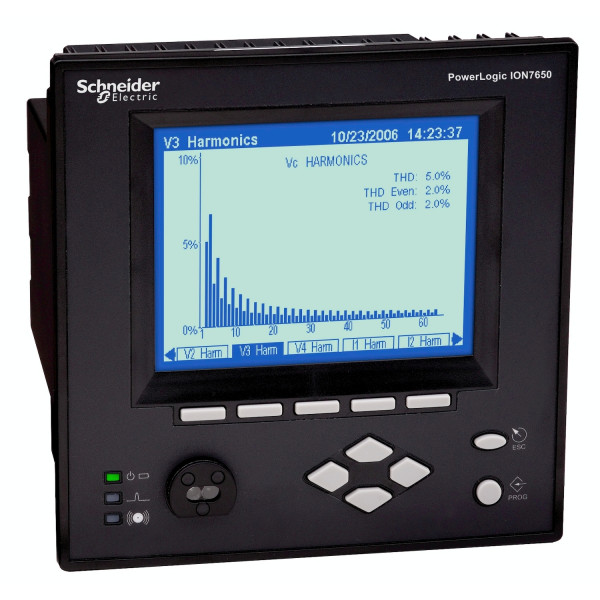

ION7650, wDispl, 5MB 512s, 5A 240VAC/300VDC 50Hz - RS+T2 - 8I+3R+4O

Ülevaaded: 0

Tootekood: M7650A0C0B5A0A0A

Quick Overview

Saadavus: Ei saa enam tellida

7 467,26 € (ilma KM-ta)

Details

Main
range
PowerLogic
device short name
ION7650
product or component type
Energy and power quality meter
Complementary
power quality analysis
harmonic distortion
voltage sag and swell detection
waveform capture
compliance monitoring
dip and swell, transient
disturbance direction detection
programmablity (logic and math functions)
setpoint learning
up to the 63rd harmonic
device application
Instrument transformer correction
Tariff metering
Energy pulsing and totalisation
Co-generation and IPP monitoring
Load curtailment
Equipment monitoring and control
Demand and power factor control
type of measurement
Current
Voltage
Frequency
Apparent power total
Power factor total
Apparent power per phase
Power factor per phase
Active power total
Active power per phase
Reactive power total
Reactive power per phase
supply voltage
110...300 V DC
85...240 V AC 47...63 Hz
network frequency
50 Hz
[In] rated current
5 A
type of network
3P + N
3P
1P + N
power consumption in VA
20 VA
maximum power consumption in VA
45 VA
display resolution
320 x 240 pixels QVGA
display type
Backlit LCD
sampling rate
512 samples/cycle
measurement current
0…5 A
input type
current 0.005...20 A 0.002 Ohm)
measurement voltage
100…600 V AC phase to phase
57…347 V AC phase to neutral
frequency measurement range
42…69 Hz
number of inputs
8 digital 120 V DC
measurement accuracy
Current 0.1 % 1...5 A
Voltage 0.1 % 57...288 V
Energy 0.2 %
accuracy class
Class 0.2S energy IEC 62053-22
number of outputs
3 relay
4 solid state
communication port protocol
Telnet
DNP3 <= 115.2 kbits/s
ION <= 115.2 kbits/s
Modbus <= 115.2 kbits/s
Modbus, master
communication port support
RS485
SUB-D 9 RS485/RS232
infrared
data recording
Event logs
Sequence of event recording
Trending/forecasting
Min/max of instantaneous values
GPS synchronisation
Data logs
Time stamping
transmission rate
<= 19200 bauds
300...115200 bauds
300...57600 bauds
memory capacity
5 MB
web services
Web server
tamperproof of settings
Protected by access code
compatibility code
ION7650
Environment
electromagnetic compatibility
Electrical fast transient/burst immunity test IEC 61000-4-4
Electrostatic discharge IEC 61000-4-2
Susceptibility to electromagnetic fields IEC 61000-4-3
1.2/50 µs shock waves immunity test IEC 61000-4-5
Conducted and radiated emissionsB CISPR 22
mounting mode
Flush-mounted
mounting support
Enclosure door
type of installation
Indoor installation
overvoltage category
III
IP degree of protection
Back IP30 IEC 60529
Front face IP50 IEC 60529
relative humidity
5…95 %
pollution degree
2
ambient air temperature for operation
-20…70 °C
ambient air temperature for storage
-40…85 °C
operating altitude
0...2000 m
standards
IEC 61010-1
width
192 mm
depth
174 mm
height
192 mm
net weight
1,9 kg
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
