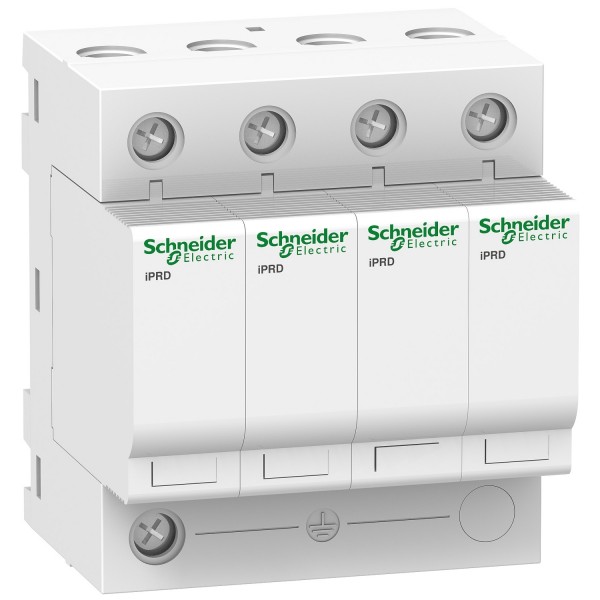

iPRD 40r modular surge arrester - 4 poles - 460 V

Details

Main
range of product	Acti 9
product name	Acti 9 iPRD
product or component type	Surge arrester with pluggable cartridge
device short name	IPRD40r
device application	Distribution
poles description	4P
remote signalling	With
signal contacts composition	1 SD (1 C/O)
surge arrester type	Electrical distribution network
earthing system	IT

Complementary
surge arrester class type	Type 2
surge arrester technology	MOV
[Ue] rated operational voltage	230 V AC (+/- 10 %) at 50/60 Hz 400 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current	Common mode: 15 kA (L/PE) Common mode: 15 kA (N/PE)
[Imax] maximum discharge current	Common mode: 40 kA L/PE Common mode: 40 kA N/PE
[Uc] maximum continuous operating voltage	Common mode: 460 V L/PE Common mode: 460 V N/PE
maximum [Up] voltage protection level	Common mode <1.9 kV type 2 L/PE Common mode <1.9 kV type 2 N/PE
[I total] discharge current	160 kA
disconnector device type	Associated circuit breaker iC60N 40 A curve C - Icu 10 kA Associated circuit breaker iC60H 40 A curve C - Icu 15 kA Associated circuit breaker iC60L 40 A curve C - Icu 25 kA
signalling circuit voltage	0.25 A/250 V AC 50/60 Hz
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	8
height	81 mm
width	72 mm
depth	69 mm
colour	White (RAL 9003)
response time	<= 25 ns
connections - terminals	Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²
tightening torque	2.5 N.m

Environment
standards	EN 61643-11 IEC 61643-11
product certifications	CE
IP degree of protection	IP40 on front face: conforming to IEC 60529 IP20 built-in: conforming to IEC 60529
IK degree of protection	IK03 conforming to IEC 62262
relative humidity	5…90 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Contractual warranty
Warranty	18 months
