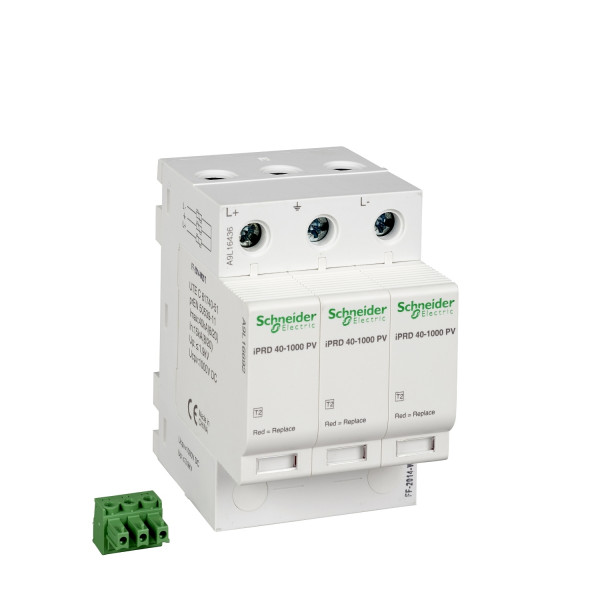

iPRD-DC 40r 600PV modular surge arrester - 2P - 840VDC

Details

Main
range of product	Acti 9
product name	Acti 9 iPRD-DC
device short name	IPRD-DC
product or component type	Surge arrester with pluggable cartridge
poles description	2P
output type	Contact (volt-free)
signal contacts composition	1 SD (1 C/O)
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 2
surge arrester technology	MOV + GDT
[Ue] rated operational voltage	600 V +/- 10 % DC
[In] nominal discharge current	15 kA
[Imax] maximum discharge current	40 kA
[Ucpv] maximum continuous operating voltage	Common mode: 600 V L+/PE Differential mode: 840 V L+/L- Common mode: 600 V L-/PE
maximum [Up] voltage protection level	Differential mode <2.8 kV type 2 L+/L- Common mode <2.8 kV type 2 L+/PE Common mode <2.8 kV type 2 L-/PE
disconnector device type	Integrated disconnector
local signalling	White/red flag
signalling circuit voltage	AC: 250 V 50/60 Hz
signalling output current	0.25 A
mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	6
height	81 mm
width	54 mm
depth	69 mm
net weight	0.4 kg
colour	White (RAL 9003)
response time	<= 25 ns
connections - terminals	Tunnel type terminal 2.5…25 mm² rigid Tunnel type terminal 2.5…16 mm² flexible Tunnel type terminal 2.5…16 mm² flexible with ferrule
wire stripping length	14 mm
tightening torque	3.5 N.m

Environment
standards	UTE C 61740-51 EN 50539-11
product certifications	CE
IP degree of protection	IP40 on front face: IP20 on terminal:
IK degree of protection	IK03
relative humidity	5…90 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Contractual warranty
Warranty	18 months
