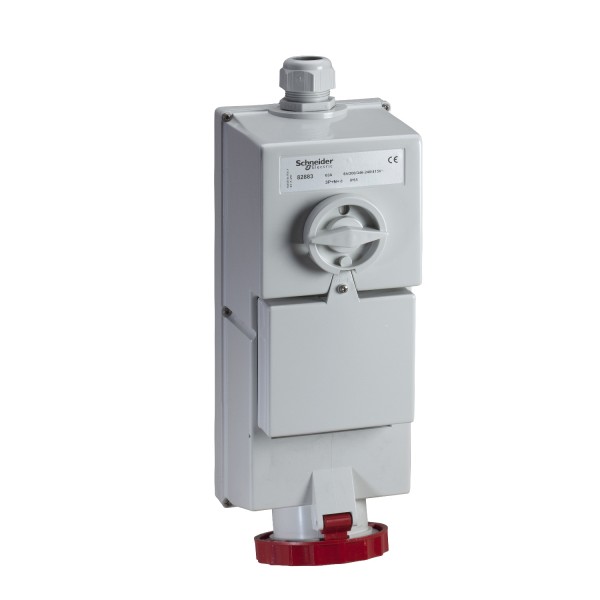

Isoblock interlocked socket - 63 A - 3P + E - 380...415 V AC - IP65

Details

Complementary
mounting mode	Wall-mounted
[In] rated current	63 A
[Ue] rated operational voltage	380...415 V
network frequency	50/60 Hz
ground lug clockwise position	6 h
protection type	Fuse
fuse type	Diazed
fuse size	E33
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Pins: stainless steel Springs: stainless steel
connections - terminals	Captive screws
maximum cable cross section	16 mm²
maximum cable outer diameter	25 mm
cable entry	Cable gland
thread type	Pg 29
net weight	2.967 kg
base dimension	144 x 389 mm
height	389 mm
width	144 mm
depth	147 mm
colour	Grey (RAL 7035)
voltage colour	Red

Environment
standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK10 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information

Contractual warranty
Warranty	18 months
