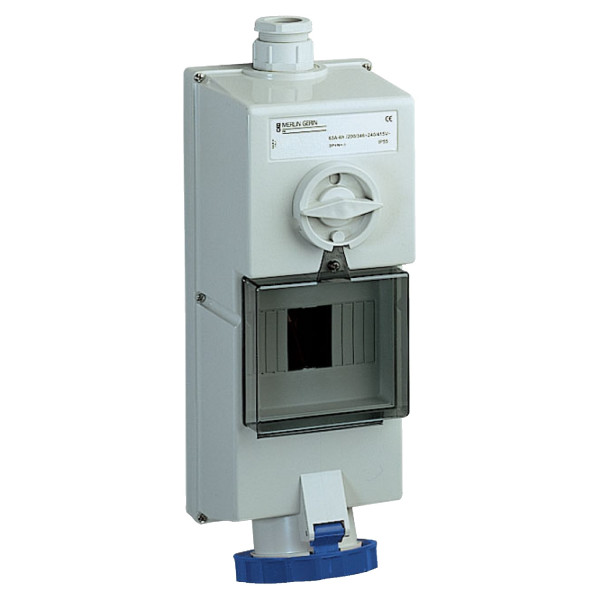

Isoblock interlocked socket - 63 A - 3P + N + E - 200...250 V AC - IP65

Details

Complementary
mounting mode	Wall-mounted
[In] rated current	63 A
[Ue] rated operational voltage	200...250 V
network frequency	50/60 Hz
ground lug clockwise position	9 h
protection type	Without protection
product compatibility	Modular device
total number of 18 mm modules	6
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Sleeves: nickel plated brass
connections - terminals	Captive screws
maximum cable cross section	35 mm²
maximum cable outer diameter	25 mm
cable entry	Cable gland
thread type	Pg 29
net weight	2.426 kg
base dimension	144 x 389 mm
height	389 mm
width	144 mm
depth	147 mm
colour	Grey (RAL 7035)
voltage colour	Blue

Environment
standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK10 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Contractual warranty
Warranty	18 months
