Isoled Analog Converter - 0..20 mA - for Zelio Analog

Product was successfully added to your shopping cart.

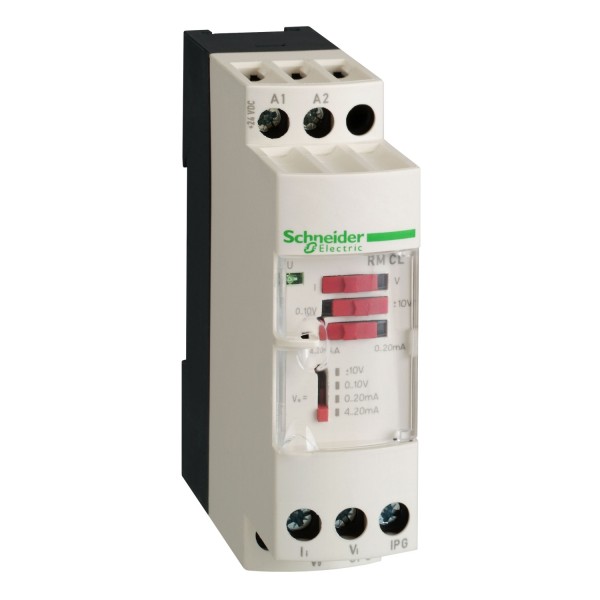

Isoled Analog Converter - 0..20 mA - for Zelio Analog

Tootekood: RMCL55BD

Quick Overview

Saadavus: Tellimisel

182,70 € (ilma KM-ta)

Qty:

Details

Main
range of product	Zelio Analog
product or component type	Voltage/current converter
analogue input type	Current 0...20 mA Current 4...20 mA Voltage +/- 10 V DC Voltage 0...10 V DC
analogue output type	Current 0...20 mA <= 500 Ohm switchable Current 4...20 mA <= 500 Ohm switchable Voltage +/- 10 V >= 100 kOhm switchable Voltage 0...10 V >= 100 kOhm switchable

Complementary
protection type	Reverse polarity protection on output Short-circuit protection on output Overvoltage protection on output (+/- 30 V)
abnormal analogue output voltage	11...15 V - 10...10 V no input or input wire broken voltage 11...15 V 0...10 V no input or input wire broken voltage -15...0 V 0...20 mA no input or input wire broken current -15...0 V 4...20 mA no input or input wire broken current
abnormal analogue output current	22…30 mA 0...20 mA no input or input wire broken voltage 22…30 mA 4...20 mA no input or input wire broken voltage -30…0 mA 0...20 mA no input or input wire broken current 4…30 mA 4...20 mA no input or input wire broken current
[Us] rated supply voltage	24 V DC +/- 20 %, isolated
current consumption	<= 70 mA voltage output <= 90 mA current output
local signalling	Power ON LED green)
measurement error	+/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) +/- 1 % of full scale 20 °C
repeat accuracy	+/- 0.2 % full scale 20 °C +/- 0.6 % full scale 60 °C
temperature coefficient	200 ppm/°C
clamping connection capacity	2 x 1.5 mm² 1 x 2.5 mm²
tightening torque	0,6…1,1 N.m
marking	CE
surge withstand	0,5 kV 1.2/50 µs IEC 61000-4-5
[Ui] rated insulation voltage	2 kV
fixing mode	By screws mounting plate) Clip-on 35 mm symmetrical DIN rail)
safety reliability data	B10d = 20000 MTTFd = 21.6 years
net weight	0,12 kg

Environment
standards	IEC 60947-1 IEC 60584-1
product certifications	UL GL CSA
IP degree of protection	IP20 terminal block) IP50 housing)
fire resistance	850 °C IEC 60695-2-1 850 °C UL
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	5 gn 10…100 Hz)IEC 60068-2-6
resistance to electrostatic discharge	6 kV in contact)IEC 61000-4-2 level 3 8 kV in air)IEC 61000-4-2 level 3
resistance to fast transients	1 kV IEC 61000-4-4 on input-output) 2 kV IEC 61000-4-4 on power supply)
disturbance radiated/conducted	CISPR 22 group 1 - class B CISPR 11
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	0…50 °C mounting side by side 0…60 °C 2 cm spacing
pollution degree	2 IEC 60664-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
