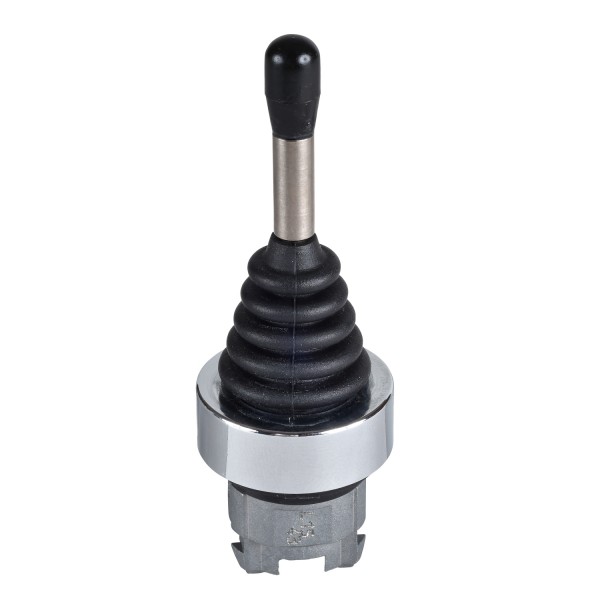

joystick controller head Ø22 2-direction spring return

Ülevaaded: 0

Tootekood: ZD4PA22

Quick Overview

Saadavus: Tellimisel

32,67 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Head for joystick controller
device short name
ZB4
bezel material
Chromium plated metal
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
To zero position spring return
operator profile
54 mm long operating shaft
operator direction information
2 directions
Complementary
net weight
0,022 kg
resistance to high pressure washer
7000000 Pa 55 °C 0.1 m
operator position information
3 positions
mechanical durability
1000000 cycles
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class I IEC 60536
IP degree of protection
IP66 IEC 60529
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK03 IEC 50102
standards
EN/IEC 60947-5-5
EN/IEC 60947-1
UL 508
JIS C8201-5-1
CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-1
product certifications
DNV
UL listed
BV
RINA
LROS (Lloyds register of shipping)
CSA
GL
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
