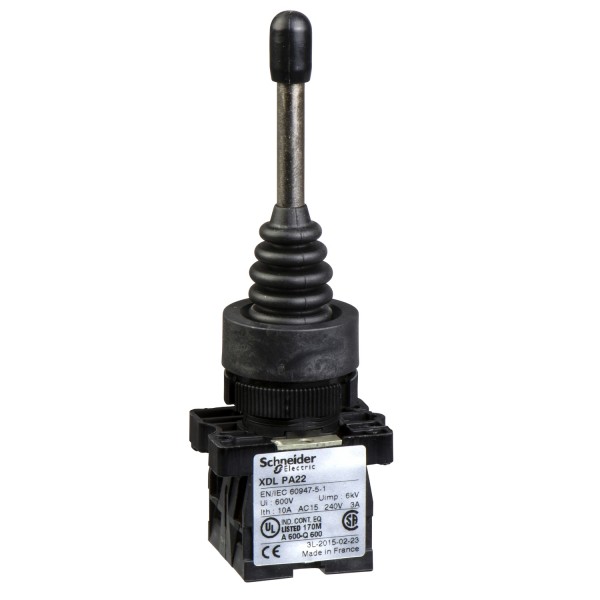

joystick controller Ø22 2-direction stay put 1NO per direction

Details

Main
range of product	Harmony XK
product or component type	Complete joystick controller
device short name	XDL
mounting diameter	22 mm
bezel material	Plastic
sale per indivisible quantity	1

Complementary
[Ie] rated operational current	0,1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0,22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage	6 kV EN 60947-1
operator position information	All positions
notch per direction	1
operator direction information	2 directions
contacts type and composition	2 NO
contact operation	Slow-break
contacts usage	Standard
short-circuit protection	10 A cartridge fuse gG EN/IEC 60947-5-1
connections - terminals	Screw clamp terminals, <= 2 x 2.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.5 mm² with cable end EN 60947-1
electrical durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0,2 A 110 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0,5 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
product certifications	BV GL CSA UL listed DNV RINA LROS (Lloyds register of shipping)
overvoltage category	Class II IEC 60536
mechanical durability	1000000 cycles
return	Spring return
height	120 mm
width	30 mm
depth	40 mm
net weight	0,095 kg
compatibility code	XDL

Environment
electrical reliability	Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
standards	JIS C 4520 EN/IEC 60947-1 EN/IEC 60947-5-4 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
vibration resistance	5 gn 2…500 Hz)IEC 60068-2-6
shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
IP degree of protection	IP65 IEC 60529

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
