Details
Müüdavad tooted
| range of product | Harmony K | |
|---|---|---|

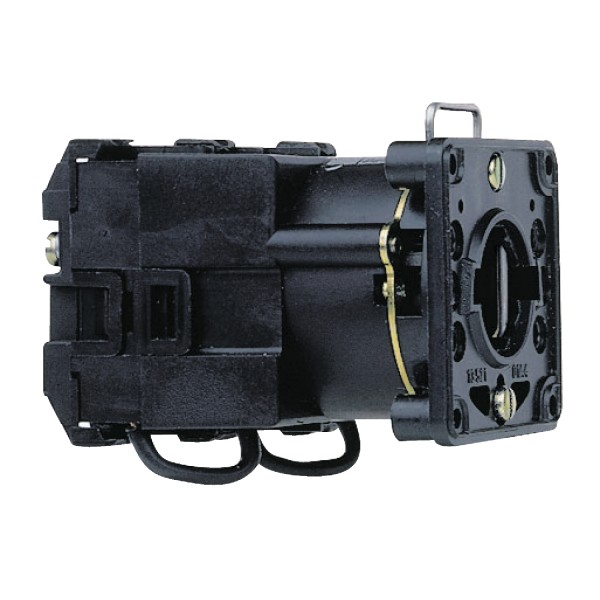

| product or component type | Cam switch body | |
| component name | K1 | |
| [Ith] conventional free air thermal current | 12 A | |
| sub-assembly composition | Contact blocks + fixing plate | |
| cam switch function | Switch | |
| mounting location | Front | |
| fixing mode | Ø 22 mm hole | |
| bezel material | Plastic |
| [Ui] rated insulation voltage | 690 V 3)IEC 60947-1 | |
|---|---|---|
| [Ithe] conventional enclosed thermal current | 10 A | |
| rated operational power in W | 10500 W AC-21, 500 - 660 V 3 phases IEC 947-3 | |
| [Ie] rated operational current AC | 1 A 500 V AC-15 IEC 947-5-1 | |
| electrical durability | 1000000 cycles AC-15 | |
| maximum operating rate | 2,5 cyc/mn AC-21 | |
| short-circuit current | 10000 A | |
| short-circuit protection | 20 A cartridge fuse gG | |
| [Uimp] rated impulse withstand voltage | 4 kV in isolating function | |
| contact operation | Slow-break | |
| positive opening | With | |
| electrical connection | Captive screw clamp terminals flexible 2 x 1.5 mm² | |
| mechanical durability | 1000000 cycles |
| standards | CENELEC EN 50013 | |
|---|---|---|
| product certifications | CSA 240 V 1 hp 1 phase | |
| protective treatment | TC | |
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| shock resistance | 30 gn IEC 68-2-27 | |
| vibration resistance | 5 gn 10…150 Hz)IEC 68-2-6 | |
| overvoltage category | Class II IEC 536 | |
| IP degree of protection | IP40 IEC 529 |
| Ilma SVHC REACh-ta | Jah | |
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Mürgiste raskemetallideta | Jah | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon |
