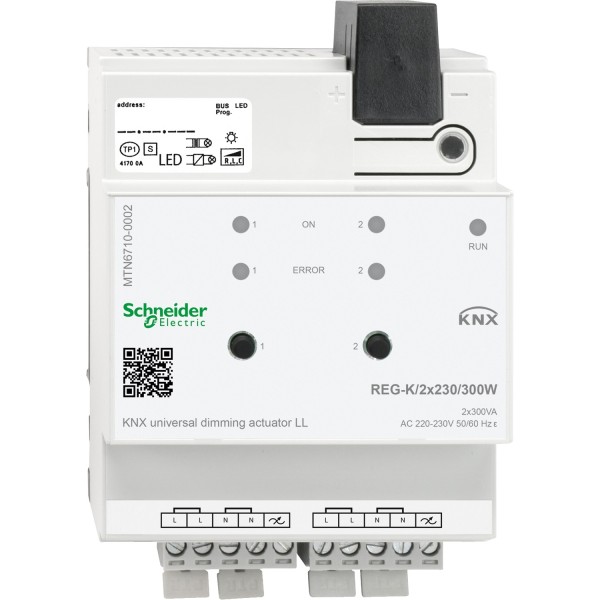

KNX universal dimming actuator LL REG-K/2x230/300W

Details

Complementary
total number of 18 mm modules	4
mounting support	DIN rail
[Ue] rated operational voltage	220...230 V 110...130 V
network frequency	50/60 Hz
number of outputs	2
local signalling	LED
load type	Incandescent lamps 4...300 W 230 V AC Halogen lamps 4...300 W 230 V AC LV halogen lamps 25...300 VA 12 V AC wound transformer) LV halogen lamps 4...300 W 12 V AC electronic transformer) Compact fluorescent lamp 4...180 W 230 V AC RC mode) Energy saving lamp 4...180 W 230 V AC RC mode) LED lamp 4...180 W 230 V AC RC mode) Compact fluorescent lamp 30...50 W 230 V AC RL LED mode) Energy saving lamp 30...50 W 230 V AC RL LED mode) LED lamp 30...50 W 230 V AC RL LED mode) Incandescent lamps 4...150 W 110 V AC Halogen lamps 4...150 W 110 V AC LV halogen lamps 25...150 VA 12 V AC wound transformer) LV halogen lamps 4...150 W 12 V AC electronic transformer) Compact fluorescent lamp 4...90 W 110 V AC RC mode) Energy saving lamp 4...90 W 110 V AC RC mode) LED lamp 4...90 W 110 V AC RC mode) Compact fluorescent lamp 15...25 W 110 V AC RL LED mode) Energy saving lamp 15...25 W 110 V AC RL LED mode) LED lamp 15...25 W 110 V AC RL LED mode)

Environment
IP degree of protection	IP20
environmental health and issues	Halogen free

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
