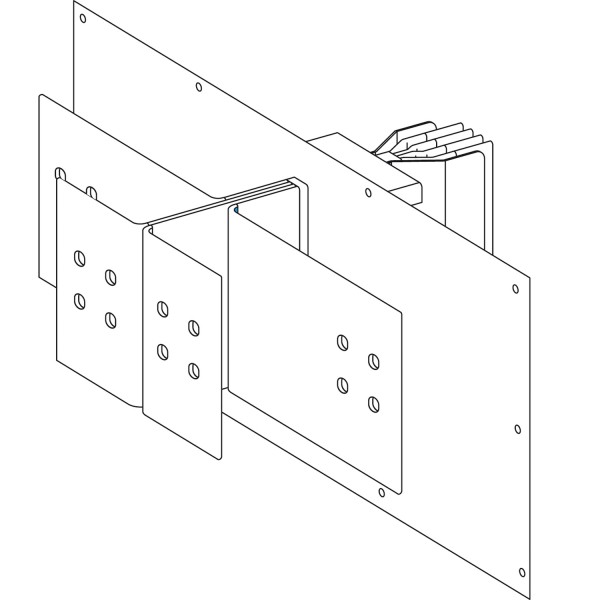

KT 3X2500CO FEED UNIT ER N7

Details

Main
range	Canalis
product name	KT
product or component type	Flat feeder trunking
device short name	KTC
device application	Feeder length
supply	Switchboard Oil-immersed transformer
material	Copper
[Ie] rated operational current	2500 A 35 °C
neutral position	Right
earth conductor	Standard earth
short-circuit level	Standard version
provided equipment	Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	113 kA
[Ipk] rated peak withstand current	248 kA
radiated magnetic field	1,3 µT
thermal stress limit	6400 A².s
THDI	33…100 % 1600 A 15…33 % 2000 A 0…15 % 2500 A
maximum voltage drop	<0,0018 V 0,8 50 Hz with 1A for 100 m long <0,0015 V 1 50 Hz with 1A for 100 m long <0,0018 V 0,9 50 Hz with 1A for 100 m long <0,0018 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting support	Plate
polarity	3L + PE
number of tap-off outlets	0
standards	IEC 61439-1 IEC 61439-6
dimension type	Made to measure
depth	200 mm
height	350 mm
length	1 235…734 mm
colour	White RAL 9001)
linear load	44 kg/m

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
derating factor	0…35 °C 100 % of In) 35…40 °C 95 % of In) 40…45 °C 90 % of In) 45…50 °C 84 % of In) 50…55 °C 79 % of In)
