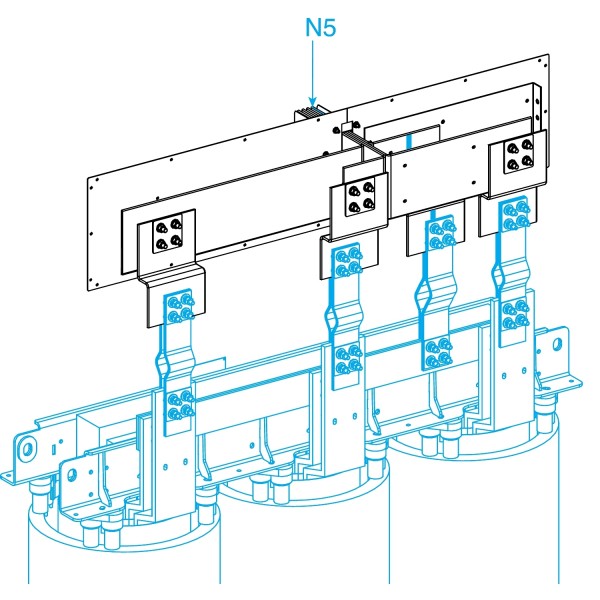

KT 5X1250AL FEED UNIT EL N5

Details

Main
range	Canalis
product name	KT
product or component type	Flat feeder trunking
device short name	KTA
device application	Feeder length
supply	Dry-type transformer
material	Aluminium
[Ie] rated operational current	1250 A 35 °C
neutral position	Right
earth conductor	Reinforced
short-circuit level	Reinforced version
provided equipment	Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	65 kA
[Ipk] rated peak withstand current	143 kA
radiated magnetic field	0,75 µT
thermal stress limit	4225 A².s
THDI	0…15 % 1250 A 15…33 % 1600 A 33…100 % 2000 A
maximum voltage drop	<0,0049 V 1 50 Hz with 1A for 100 m long <0,005 V 0,9 50 Hz with 1A for 100 m long <0,0047 V 0,8 50 Hz with 1A for 100 m long <0,0043 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting support	Plate
polarity	3L + N + PER
number of tap-off outlets	0
standards	IEC 61439-6 IEC 61439-1
dimension type	Made to measure
connection pitch	390…700 mm
bar width	160 mm
depth	150 mm
height	230 mm
length	1 235 mm 1600 mm
colour	White RAL 9001)
linear load	21 kg/m

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
derating factor	0…35 °C 100 % of In) 35…40 °C 97 % of In) 40…45 °C 93 % of In) 45…50 °C 90 % of In) 50…55 °C 86 % of In)
