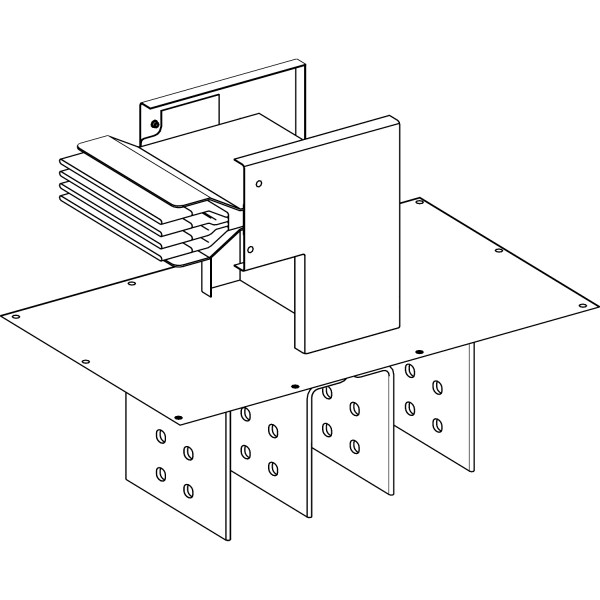

KT 5X2500CO FEED UNIT ER N3

Details

Main
range	Canalis
product name	KT
product or component type	Flatwise elbow feeder trunking
device short name	KTC
device application	Feeder length
supply	Oil-immersed transformer Switchboard
material	Copper
[Ie] rated operational current	2500 A 35 °C
neutral position	Down
direction change type	1 edgewise left
earth conductor	Reinforced
short-circuit level	Reinforced version
provided equipment	Trunking unit

Complementary
housing material	Polyester film
contacts material	Copper
[Ue] rated operational voltage	1000 V
network frequency	50/60 Hz
[Ui] rated insulation voltage	1000 V
[Icw] rated short-time withstand current	113 kA
[Ipk] rated peak withstand current	248 kA
radiated magnetic field	1,3 µT
thermal stress limit	12769 A².s
THDI	33…100 % 1600 A 15…33 % 2000 A 0…15 % 2500 A
maximum voltage drop	<0,0018 V 0,8 50 Hz with 1A for 100 m long <0,0015 V 1 50 Hz with 1A for 100 m long <0,0018 V 0,9 50 Hz with 1A for 100 m long <0,0018 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting support	Plate
polarity	3L + N + PER
number of tap-off outlets	0
standards	IEC 61439-1 IEC 61439-6
dimension type	Made to measure
connection pitch	80…250 mm
depth	350 mm
height	1 200…534 mm
length	2 300 mm
colour	White RAL 9001)
linear load	60 kg/m

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
derating factor	0…35 °C 100 % of In) 35…40 °C 95 % of In) 40…45 °C 90 % of In) 45…50 °C 84 % of In) 50…55 °C 79 % of In)
