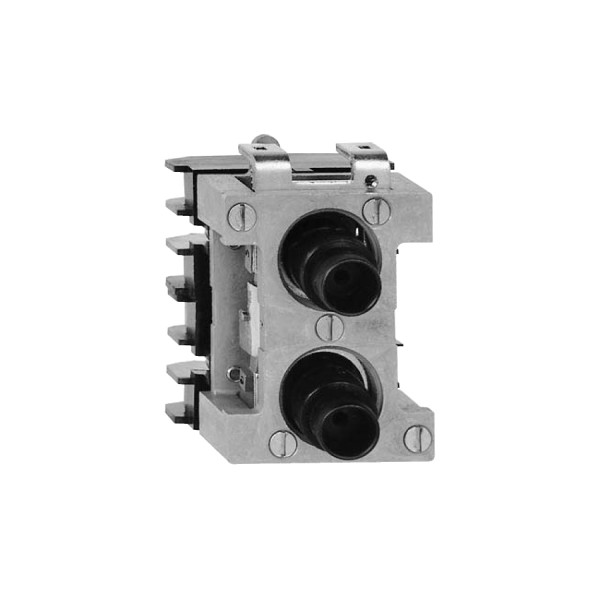

latching contact block - 1 NC + 1 NO - front mounting, 30 mm centres

Ülevaaded: 0

Tootekood: XEND3811

Quick Overview

Saadavus: Tellimisel

47,69 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Contact block
component name
XEND
electrical circuit type
Control circuit
contact block application
Single speed
contact block type
Double
type of operator
Latching
product compatibility
XACM
XACB
mechanical interlocking
Without mechanical interlock
contacts type and composition
1 NC + 1 NO
mounting of block
Front mounting
contact operation
Slow-break
Complementary
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
mechanical durability
1000000 cycles
contact code designation
A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
maximum resistance across terminals
25 MOhm
short-circuit protection
10 A fuse protection by cartridge fuse type gG
rated operational power in W
42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
rated operational power in VA
140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load)
525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load)
terminals description ISO n°1
B
(11-12)NC
(23-24)NO
terminals description ISO n°2
(23-24)NO
(11-12)NC
B
terminal identifier
(13-14)NO
(11-12)NC
net weight
0.17 kg
Environment
standards
CSA C22.2 No 14
EN 60947-5-1
IEC 60947-5-1
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance
100 gn conforming to IEC 60068-2-27
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
