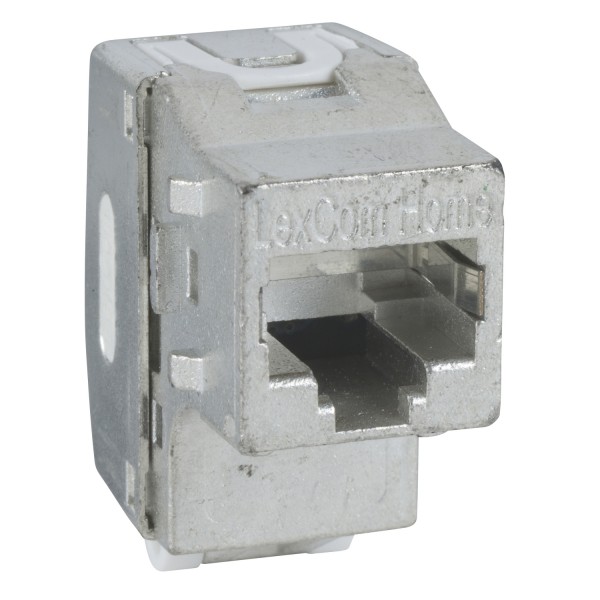

LexCom Home Premium - RJ45 connector, S/FTP

Details

Complementary
connector type	RJ45 S/FTP 6)
bandwidth	900 MHz 900 MHz 6)
near end crosstalk [NEXT]	-58 dB at 100 MHz
maximum insertion loss	0.025 dB
average impedance	100 Ohm
insulation resistance	500 MOhm at 100 V DC
shield attenuation	70 dB
minimum number of matings	2500 cycles
contacts material	1.3 µm gold over 1.0 µm nickel
material	PC/ABS Tin-plated die-cast zinc
contact resistance	20000 µOhm
transfer impedance	< 0.25 mOhm at 1 MHz
colour tint	White
height	16.8 mm
width	31.4 mm
depth	36.1 mm
weight	0.0255 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
