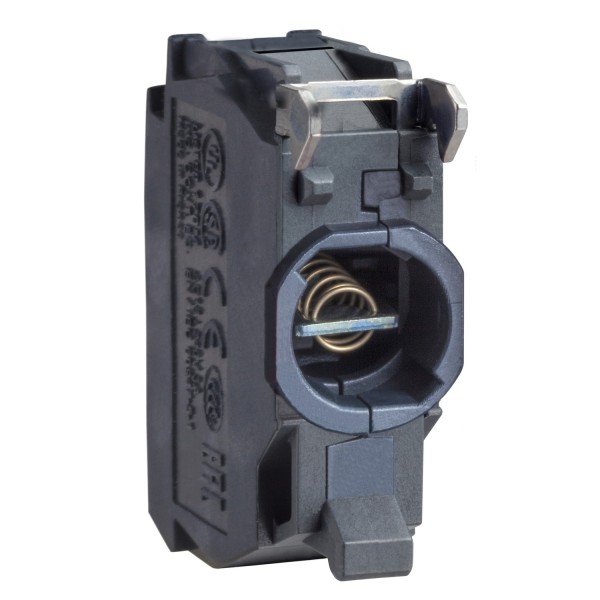

light block for head Ø22 for BA9s bulb 250V screw clamp terminals

Ülevaaded: 0

Tootekood: ZBV6

Quick Overview

Saadavus: Tellimisel

2,15 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
Harmony XB4
product or component type
Light block
device short name
ZBV
sale per indivisible quantity
5
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
signalling type
Steady
light source
Bulb not included
bulb base
BA 9s
light block supply
Direct
[Us] rated supply voltage
<= 250 V
Complementary
net weight
0,016 kg
tightening torque
0,8…1,2 N.m EN 60947-1
shape of screw head
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV IEC 61000-4-5
mounting of block
Front mounting
electrical composition code
M7
M8
MF2
P3
PF2
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
IP degree of protection
IP20 IEC 60529
standards
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
UL 508
EN/IEC 60947-5-5
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1
product certifications
CSA
UL listed
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
10 V/m IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission
Class B IEC 55011
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
