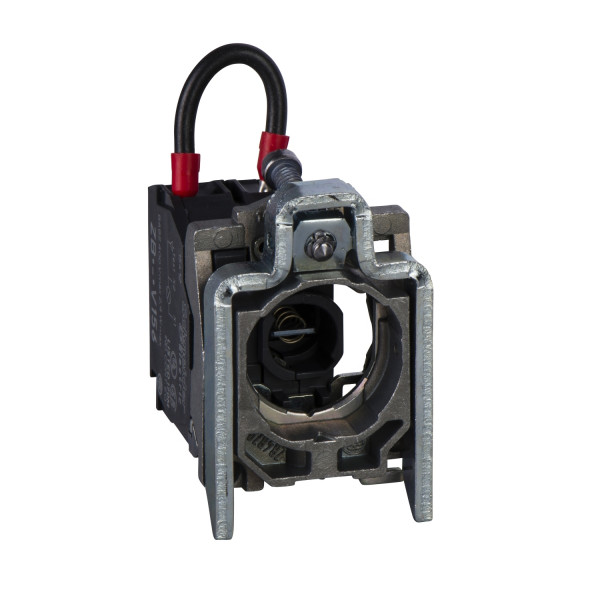

light block with body/fixing collar for BA9s bulb 250V

Tootekood: ZB4BV156

Quick Overview

Saadavus: Tellimisel

22,63 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete body/light block assembly
device short name
ZB4
fixing collar material
Zamak
sale per indivisible quantity
1
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end
light source
Bulb not included
bulb base
BA 9s
light block supply
Direct <2.4 W
[Us] rated supply voltage
<= 250 V
Complementary
CAD overall width
30 mm
CAD overall height
47 mm
CAD overall depth
37 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0.062 kg
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
EN 60947-1 6 kV
signalling type
Steady
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
electrical shock protection class
Class I conforming to IEC 60536
standards
CSA C22.2 No 14
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C8201-5-1
JIS C8201-1
product certifications
GL
BV
UL listed
DNV
CSA
RINA
LROS (Lloyds register of shipping)
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
