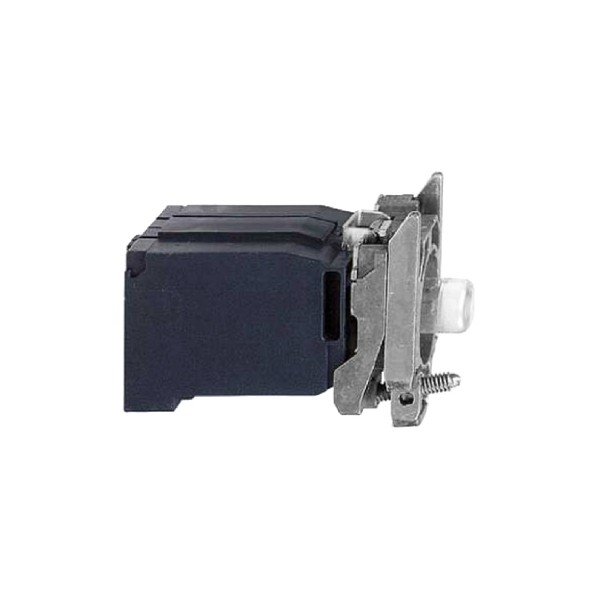

light block with body/fixing collar with BA9s incandesc. bulb 440...480V

Ülevaaded: 0

Tootekood: ZB4BV8

Quick Overview

Saadavus: Tellimisel

23,64 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete body/light block assembly
device short name
ZB4
fixing collar material
Zamak
sale per indivisible quantity
1
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end
light source
Incandescent
bulb base
BA 9s
light block supply
Via integral transformer 1,2 VA 6 V
[Us] rated supply voltage
440...480 V AC 50/60 Hz
Complementary
CAD overall width
30 mm
CAD overall height
47 mm
CAD overall depth
60 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0,128 kg
tightening torque
0,8…1,2 N.m EN 60947-1
shape of screw head
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
[Ui] rated insulation voltage
600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN 60947-1
signalling type
Steady
mounting of block
Front mounting
electrical composition code
P4
M9
device presentation
Basic sub-assemblies
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…55 °C
electrical shock protection class
Class I IEC 60536
IP degree of protection
IP20
standards
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
JIS C8201-1
product certifications
UL listed
LROS (Lloyds register of shipping)
GL
RINA
BV
CSA
DNV
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
