limit switch body ZCD - compact - 2NO - slow-break

Product was successfully added to your shopping cart.

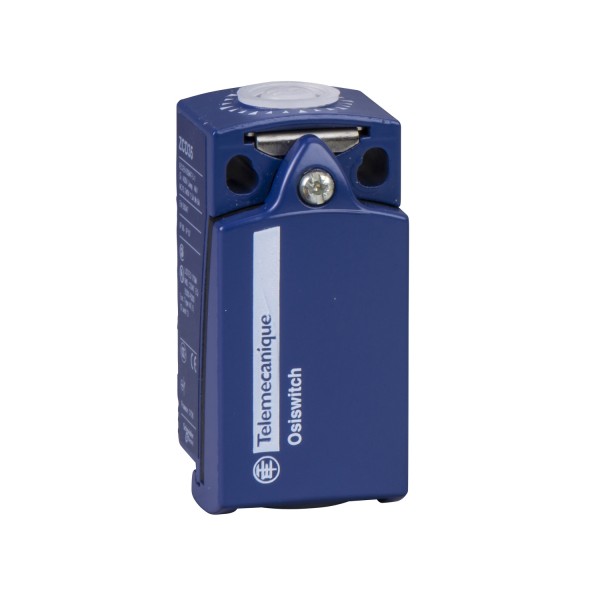

limit switch body ZCD - compact - 2NO - slow-break

Tootekood: ZCD28

Quick Overview

Saadavus: Tellimisel

24,53 € (ilma KM-ta)

Qty:

Details

Main
range of product	OsiSense XC
series name	Standard compact
product or component type	Limit switch body
device short name	ZCD
design	Compact
body type	Fixed
associated head	ZCE11 ZCE08 ZCE07 ZCE67 ZCE01 ZCE29 ZCE02 ZCE13 ZCE10 ZCE05 ZCE21 ZCE63 ZCE24 ZCEH2 ZCEH0 ZCE06 ZCE28 ZCE27 ZCE64 ZCE14 ZCE62 ZCE66 ZCE65
body material	Zamak
number of poles	2
contacts type and composition	2 NO
contact operation	Slow-break, simultaneous

Complementary
associated connection component	ZCDEP16 ZCDEN12 ZCDEG11 ZCDEG13 ZCDEF12 ZCDEP20
electrical connection	Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
contacts material	Silver plated contacts
positive opening	Without
minimum actuation speed	6 m/s
contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1,5 A EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0,1 A EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 VUL 508 500 V 3)IEC 60947-1 300 VCSA C22.2 No 14
[Uimp] rated impulse withstand voltage	6 kV IEC 60664 6 kV IEC 60947-1
short-circuit protection	10 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
width	31 mm
height	65 mm
depth	30 mm

Environment
product compatibility	XCKD
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
