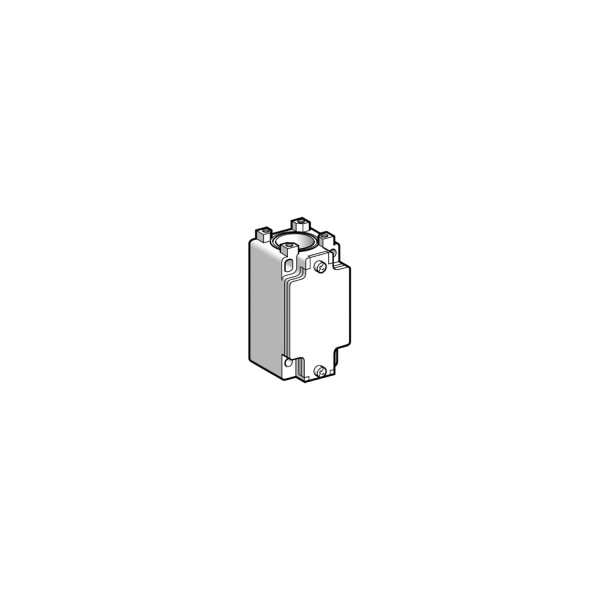

limit switch body ZCKJ - plug-in - w/o display - 2C/O - snap action - 1/2"NPT

Ülevaaded: 0

Tootekood: ZCKJ415H7

Quick Overview

Saadavus: Ei saa enam tellida

77,05 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCKJ
body type
Plug-in body
product compatibility
XCKJ
associated head
ZCKE21
ZCKE67
ZCKE05
ZCKE61
ZCKE62
ZCKE619
ZCKE66
ZCKE629
ZCKE23
body material
Metal
cable entry
1 entry tapped for 1/2" NPT conduit
number of poles
2
contacts type and composition
2 C/O
contact operation
Snap action
number of steps
2 sequential
contacts material
Silver plated contacts
Complementary
local display
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
positive opening
Without
minimum actuation speed
0.01 m/min
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
maximum resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
IEC 60664 6 kV
IEC 60947-1 6 kV
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 13 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 9 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
40 mm
height
77 mm
depth
44 mm
net weight
0.31 kg
terminals description ISO n°1
(21-22)NC
(13-14)NO
Environment
IP degree of protection
IP66
IK degree of protection
IK07
ambient air temperature for operation
-25…70 °C for standard environment
10…120 °C for high temperature
-40…70 °C for low temperature
ambient air temperature for storage
-40…120 °C
environmental characteristic
Low temperature
High temperature
Standard environment
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Contractual warranty
Warranty
18 months
