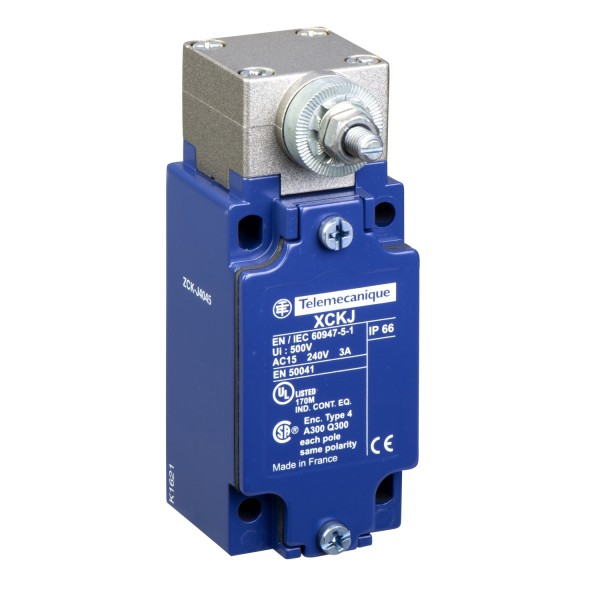

limit switch body ZCKJ - rotary head w/o lever - fixed - 2C/O - snap - Pg13

Ülevaaded: 0

Tootekood: ZCKJ4046

Quick Overview

Saadavus: Tellimisel

161,02 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body with spring return rotary head
device short name
ZCKJ
body type
Fixed
product compatibility
XCKJ
body material
Metal
cable entry
1 entry tapped for Pg 13.5 cable gland
number of poles
2
contacts type and composition
2 C/O
contact operation
Snap action
number of steps
2 3 positions
contacts material
Silver plated contacts
Complementary
switch actuation
From left and right
local display
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
positive opening
Without
minimum actuation speed
0.01 m/min
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
maximum resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
IEC 60664 6 kV
IEC 60947-1 6 kV
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
43 mm
height
109 mm
depth
60 mm
net weight
0.465 kg
terminals description ISO n°1
(23-24)NO
(13-14)NO
(21-22)NC
(11-12)NC
Environment
IP degree of protection
IP66
IK degree of protection
IK07
ambient air temperature for operation
10…120 °C for high temperature
ambient air temperature for storage
10…120 °C
environmental characteristic
High temperature
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
