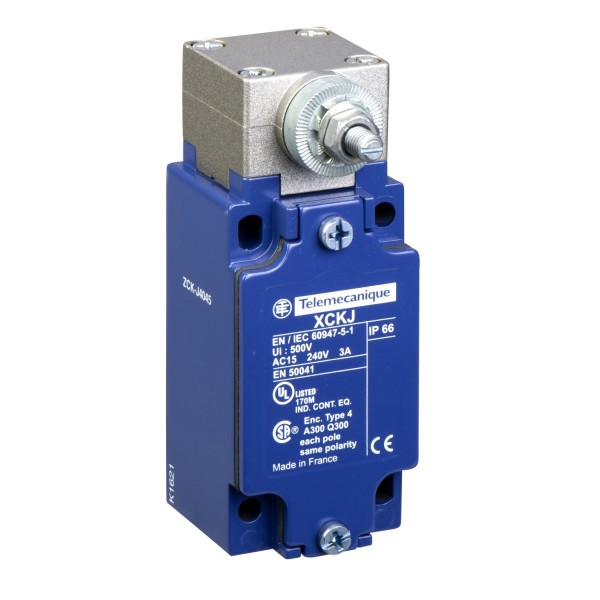

limit switch body ZCKJ - rotary head w/o lever - fixed - 2C/O - snap - Pg13

Ülevaaded: 0

Tootekood: ZCKJ404

Quick Overview

Saadavus: Tellimisel

59,35 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body with spring return rotary head
device short name
ZCKJ
body type
Fixed
product compatibility
XCKJ
body material
Metal
cable entry
1 entry tapped for Pg 13.5 cable gland
number of poles
2
contacts type and composition
2 C/O
contact operation
Snap action
number of steps
2 3 positions
contacts material
Silver plated contacts
Complementary
switch actuation
From left and right
local display
Without
electrical connection
Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
positive opening
Without
minimum actuation speed
0,01 m/min
[Ie] rated operational current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A
0,27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V 3)IEC 60947-1 contact block
300 VCSA C22.2 No 14 contact block
300 VUL 508 contact block
maximum resistance across terminals
0,25 mOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse gG
width
40 mm
height
102 mm
depth
60 mm
net weight
0,455 kg
terminals description ISO n°1
(23-24)NO
(11-12)NC
(13-14)NO
(21-22)NC
Environment
IP degree of protection
IP66
IK degree of protection
IK07
ambient air temperature for operation
-25…70 °C standard environment
ambient air temperature for storage
-40…70 °C
environmental characteristic
Standard environment
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
