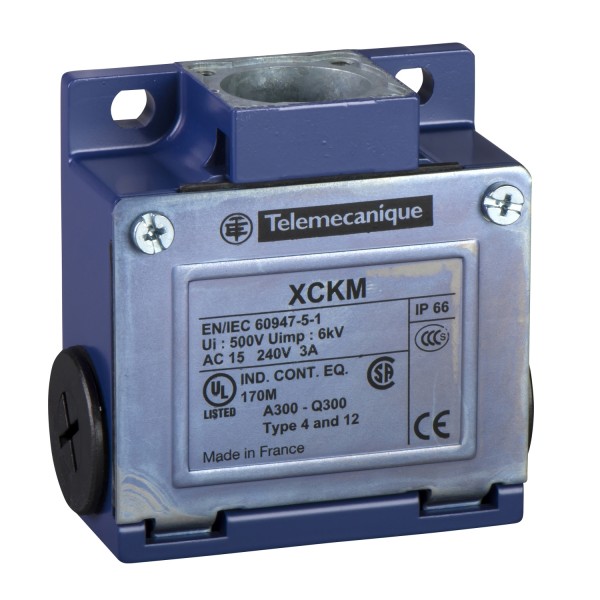

limit switch body ZCKM - 2NC+1NO - snap action - 1/2''NPT

Ülevaaded: 0

Tootekood: ZCKMD39H7

Quick Overview

Saadavus: Tellimisel

39,23 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCKM
body type
Fixed
product compatibility
XCKM
associated head
ZCKD16
ZCKD029
ZCKD10
ZCKD239
ZCKD02
ZCKD21
ZCKD109
ZCKD17
ZCKD219
ZCKD81
ZCKD06
ZCKD08
ZCKD41
ZCKD59
ZCKD91
ZCKD23
ZCKD15
ZCKD05
body material
Metal
cable entry
3 entries tapped for Pg 11 cable gland, one with 1/2" NPT adaptor
number of poles
3
contacts type and composition
2 NC + 1 NO
contact operation
Snap action
number of steps
1 1 position
contacts material
Silver plated contacts
Complementary
local display
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
positive opening
With
minimum actuation speed
0.01 m/min
[Ie] rated operational current
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 appendix A
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
6 A
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
maximum resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
40 mm
height
99 mm
depth
57 mm
net weight
0.15 kg
terminals description ISO n°1
(13-14)NC
(11-12)NO
(21-22)NC
(23-24)NO
Environment
IP degree of protection
IP65
IK degree of protection
IK03
ambient air temperature for operation
-25…70 °C for standard environment
ambient air temperature for storage
-40…70 °C
environmental characteristic
Standard environment
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Contractual warranty
Warranty
18 months
