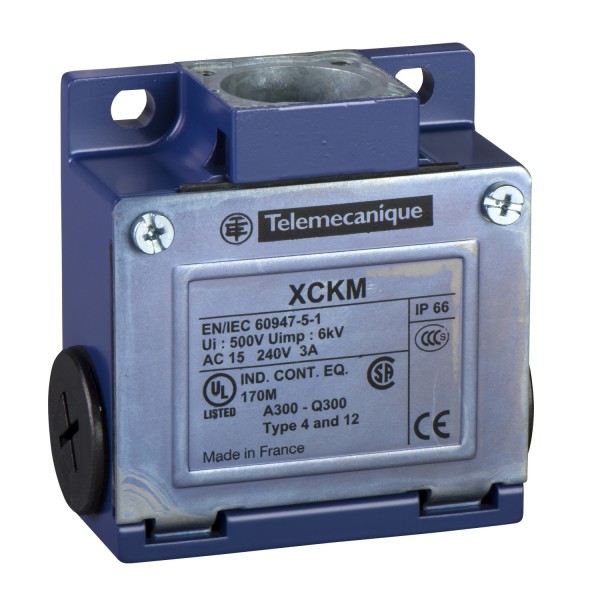

limit switch body ZCKM - 2NC+1NO - snap action - M20

Ülevaaded: 0

Tootekood: ZCKMD39H29

Quick Overview

Saadavus: Tellimisel

33,53 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCKM
body type
Fixed
product compatibility
XCKM
associated head
ZCKD59
ZCKD91
ZCKD10
ZCKD109
ZCKD239
ZCKD029
ZCKD17
ZCKD08
ZCKD81
ZCKD219
ZCKD41
ZCKD05
ZCKD15
ZCKD21
ZCKD23
ZCKD02
ZCKD06
ZCKD16
body material
Metal
cable entry
3 entries tapped for M20 x 1.5 cable gland
number of poles
3
contacts type and composition
2 NC + 1 NO
contact operation
Snap action
number of steps
1 1 position
contacts material
Silver plated contacts
Complementary
local display
Without
electrical connection
Screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
positive opening
With
minimum actuation speed
0,01 m/min
[Ie] rated operational current
1,5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A
0,1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
6 A
[Ui] rated insulation voltage
400 V 3)IEC 60947-1 contact block
300 VCSA C22.2 No 14 contact block
300 VUL 508 contact block
maximum resistance across terminals
0,25 mOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse gG
electrical durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
width
40 mm
height
73 mm
depth
36 mm
net weight
0,08 kg
terminals description ISO n°1
(13-14)NO
(21-22)NC
(11-12)NC
(23-24)NO
Environment
IP degree of protection
IP65
IK degree of protection
IK03
ambient air temperature for operation
-25…70 °C standard environment
ambient air temperature for storage
-40…70 °C
environmental characteristic
Standard environment
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
