Details
Characteristics
| range of product | OsiSense XC | |
|---|---|---|
| series name | Standard format | |

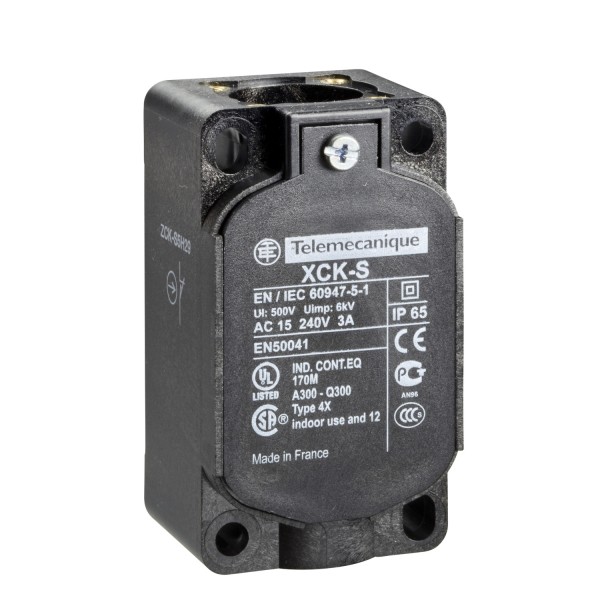

| product or component type | Limit switch body | |
| device short name | ZCKS | |
| body type | Fixed | |
| product compatibility | XCKS | |
| associated head | ZCKD81ZCKD06ZCKD39ZCKD54ZCKD08ZCKD91ZCKD31ZCKD41ZCKD01ZCKD019ZCKD34ZCKD59ZCKD029ZCKD49ZCKD05ZCKD02ZCKD55ZCKD33 | |
| body material | Plastic | |
| cable entry | 1 entry tapped for M20 x 1.5 cable gland | |
| number of poles | 3 | |
| contacts type and composition | 1 NC + 2 NO | |
| contact operation | Snap action | |
| number of steps | 1 1 position | |
| contacts material | Silver plated contacts |
| local display | Without | |
|---|---|---|
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² | |
| positive opening | With | |
| minimum actuation speed | 0.01 m/min | |
| [Ie] rated operational current | 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 appendix A0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 6 A | |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 for contact block300 V conforming to CSA C22.2 No 14 for contact block300 V conforming to UL 508 for contact block | |
| maximum resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 | |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 606644 kV IEC 60947-1 | |
| short-circuit protection | 6 A cartridge fuse, type gG | |
| electrical durability | 5000000 cycles, DC-13 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| width | 40 mm | |
| height | 73 mm | |
| depth | 36 mm | |
| net weight | 0.08 kg | |
| terminals description ISO n°1 | (33-34)NO(13-14)NO(31-32)NC |
| IP degree of protection | IP65 | |
|---|---|---|
| IK degree of protection | IK03 | |
| ambient air temperature for operation | -25…70 °C for standard environment | |
| ambient air temperature for storage | -40…70 °C | |
| environmental characteristic | Standard environment |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
