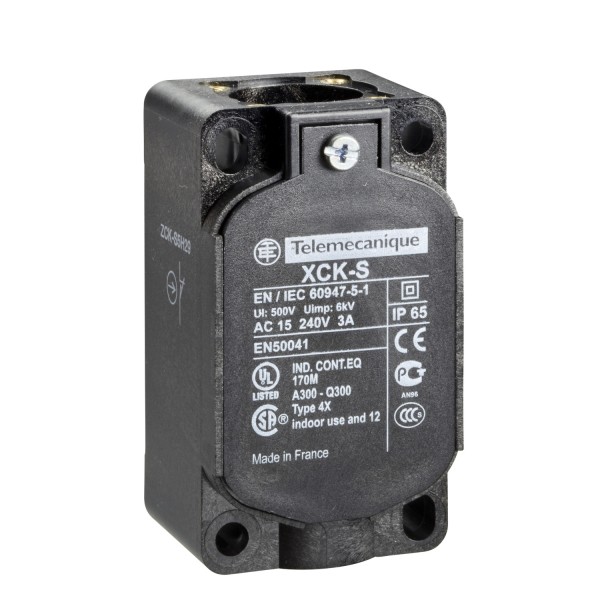

limit switch body ZCKS - 2NC - snap action - Pg13.5

Ülevaaded: 0

Tootekood: ZCKS9

Quick Overview

Saadavus: Tellimisel

110,66 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCKS
body type
Fixed
product compatibility
XCKS
associated head
ZCKD31
ZCKD59
ZCKD81
ZCKD49
ZCKD91
ZCKD06
ZCKD34
ZCKD33
ZCKD08
ZCKD02
ZCKD39
ZCKD05
ZCKD54
ZCKD41
ZCKD55
ZCKD019
ZCKD01
ZCKD029
body material
Plastic
cable entry
1 entry tapped for Pg 13.5 cable gland
number of poles
2
contacts type and composition
2 NC
contact operation
Snap action
number of steps
1 1 position
contacts material
Silver plated contacts
Complementary
local display
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
positive opening
With
minimum actuation speed
0.01 m/min
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
maximum resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
IEC 60947-1 4 kV
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
40 mm
height
73 mm
depth
36 mm
net weight
0.08 kg
terminals description ISO n°1
(11-12)NC
(21-22)NC
Environment
IP degree of protection
IP65
IK degree of protection
IK03
ambient air temperature for operation
-25…70 °C for standard environment
ambient air temperature for storage
-40…70 °C
environmental characteristic
Standard environment
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
