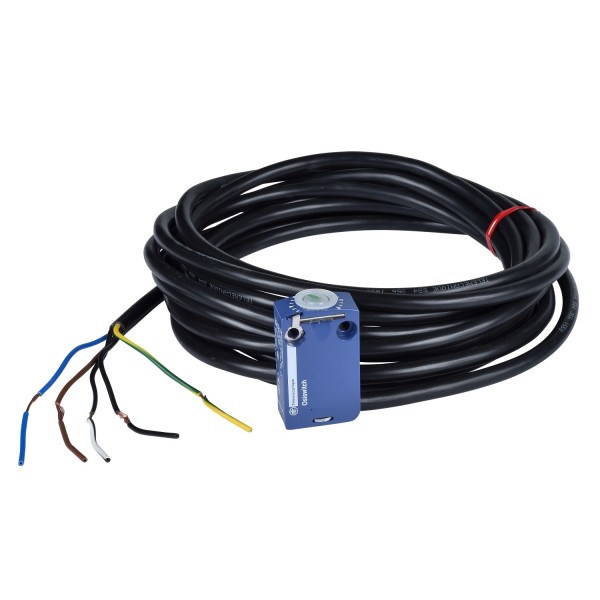

limit switch body ZCMD - 1NC+1NO - silver - slow-break - connection - 2 m

Ülevaaded: 0

Tootekood: ZCMD25L2

Quick Overview

Saadavus: Tellimisel

29,45 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCMD
design
Miniature
body type
Fixed
associated head
ZCE65
ZCE27
ZCE62
ZCE64
ZCE28
ZCEG1
ZCE11
ZCE67
ZCE01
ZCE10
ZCEF2
ZCE09
ZCE21
ZCE24
ZCE08
ZCE07
ZCE66
ZCE63
ZCE29
ZCEF0
ZCE13
ZCE02
ZCE14
ZCE06
body material
Zamak
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Slow-break
Slow-break, break before make
Complementary
product compatibility
XCMD
electrical connection
Removable cable
cable length
2 m
cable composition
5 x 0.75 mm²
wire insulation material
PvR
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
6 m/min
[Ui] rated insulation voltage
300 V 3)UL 508
400 V 3)IEC 60947-5-1
300 V 3)CSA C22.2 No 14
maximum resistance across terminals
25 mOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
4 kV IEC 60664
4 kV IEC 60947-1
short-circuit protection
6 A cartridge fuse gG
electrical durability
5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
width
30 mm
height
50 mm
depth
16 mm
net weight
0,065 kg
Environment
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
